ARRI LCUBE CUB-1 Basic Set

Overview
The LCUBE CUB-1 is a signal converter that allows for connectivity between the ALEXA Mini or ALEXA Mini LF and the WCU-4. It offers two LBUS connectors and one SERIAL connector, and can be connected to the camera via the LCUBE and a daisy chain of cforce motors. This allows for focus tracking and distance readings on the WCU-4, similar to other ALEXA cameras or the UMC-4.

The LCUBE also features an integrated dovetail for easy mounting of the LCUBE Bracket or the CLM-5/cforce mini Clamp Console. It serves as a miniature converter box, converting LBUS protocols to serial protocols and vice versa. Additionally, it can adapt the Ultrasonic Distance Measure UDM-1 to the ALEXA Mini, allowing for UDM-1 readouts on the WCU-4 handset.

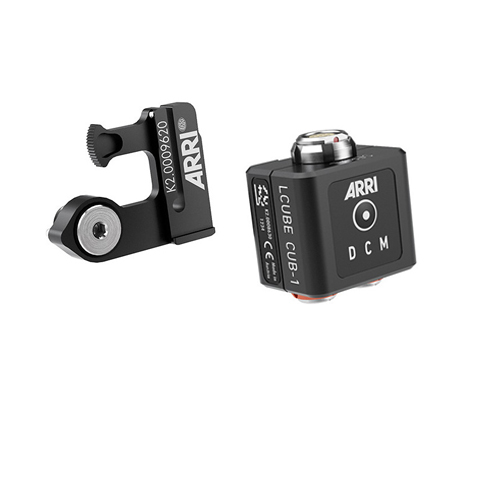

Included in box
1 x LCUBE CUB-1 Miniature Converter
1 x LCUBE Bracket

About the ARRI LCUBE CUB-1 Basic Set
The LCUBE CUB-1 is a miniature signal converter that converts LBUS protocols to serial protocols and vice versa. The UDM-1 can be connected to the ALEXA Mini via the LCUBE and a daisy chain of one or more cforce motors, delivering distance readings to the WCU-4.

Miniature converter box converting the LBUS protocol to serial protocols and vice versa. Adapts Ultrasonic Distance Measure UDM-1 to ALEXA Mini camera (for UDM-1 readout on WCU-4 handset). Provides two LBUS connectors (4 pin) and one SERIAL connector (7 pin). The LCUBE has an integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console 19/15 mm (K2.0006176).

Compatibility ALEXA Mini

Provides two LBUS connectors and one SERIAL connector
Can be connected to the ALEXA Mini or ALEXA Mini LF via the LCUBE and a daisy chain of one or more cforce motors
Delivering distance readings to the WCU-4
Allowing focus tracking in the same way as is possible with other ALEXA cameras or the Universal Motor Controller UMC-4
Offers am integrated dovetail for mounting the LCUBE Bracket (K2.0009620) or the CLM-5/cforce mini Clamp Console Clamp Console 19/15 mm (K2.0006176).
