Overview
The X5 Ultra is a top-of-the-line PTZ camera that offers next-level image quality with its advanced Sony image sensor. It also features a large, daylight-visible tally system and AI tracking for natural and predictable movement. With the highest possible NDI® HX3 performance, dual network output, and various control options, the X5 Ultra is a versatile and powerful tool for any production. It also has USB-C connectivity for easy integration with popular video conferencing platforms.
But the X5 Ultra is more than just a high-performance camera. It also boasts a sleek design with dual e-ink labels for easy branding and maintenance. And with its integrated NDI® HX decoder and compatibility with BirdDog apps, the X5 Ultra offers convenience and flexibility for any production setup. Whether youre broadcasting live or recording a CEO address, the X5 Ultra is the ultimate choice for professional results.
Summary
Focal Length: 5.4mm – 104mm
Max Aperture: f/1.6
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: CMOS
Video Outputs:
12G-SDI
Ethernet
HDMI
USB-C
Weight: 2-5kg
About the Birddog X5 Ultra PTZ Camera – Black
X5 Ultra. In every way.
Productions are demanding; the X5 Ultra makes demanding a walk in the park. Featuring unparalleled capability, quality, and performance – take your PTZ game up a notch with X5 Ultra.
Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and acceleration/deceleration of moves look natural and slick. Sporting BirdDog’s signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding*, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI® | HX3 possible. X5 Ultra. In every way.
*NDI – HX2 and NDI – HX3 supported.

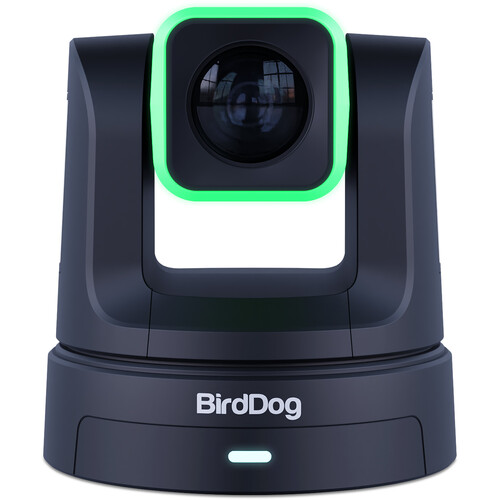

Halo Tally. A higher order of visual queue
Professional results need professional tools. The X5 Ultra sports the most visible and effective Tally system available. Up front, with a large, daylight-visible border keeping talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.
AI Tracking. Built for now and the future
We aren’t playing catch-phrase bingo here. X5 Ultra takes AI auto-tracking and framing to the next level. Featuring an order of magnitude more neural processing capabilities, the out-of-the-box X5 Ultra has incredible AI powers but also the headroom to grow as AI progresses. Magic.
NDI – HX3. Performance meets convenience
The X5 Ultra delivers superior network performance via our implementation of NDI® | HX3. Significantly reducing network impact while maintaining excellent image quality, meaning it is more friendly in more network environments. BirdDog’s NDI® | HX3 surpasses certification parameters, delivering quality and performance you can count on.
Connectivity for days
Video productions all look different. We love NDI® because it allows a single network cable to operate everything, but sometimes it makes sense to take a different path. X5 Ultra makes this a snap. In a world of compromise, the X5 Ultra stands proud. With 12G-SDI output, dual HDMI outputs, multiple network formats, including NDI® | HX3, SRT, RTMP and RTSP, Webcam connectivity over USB, however you work and whatever demand in quality you have, X5 Ultra has got your back for today’s production… and tomorrow’s!
Integrated NDI – HX Decoder. It can’t get much more convenient!
The X5 Ultra is part of the family of PTZ cameras featuring the first simultaneous NDI® | HX* Decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. We’ve pulled all this connectivity into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle. Less complexity. Whether you’re broadcasting live or delivering a CEO address, the integrated NDI® | HX decoder enables more engagement with less setup.
*NDI® | HX2 and NDI® | HX3 supported.

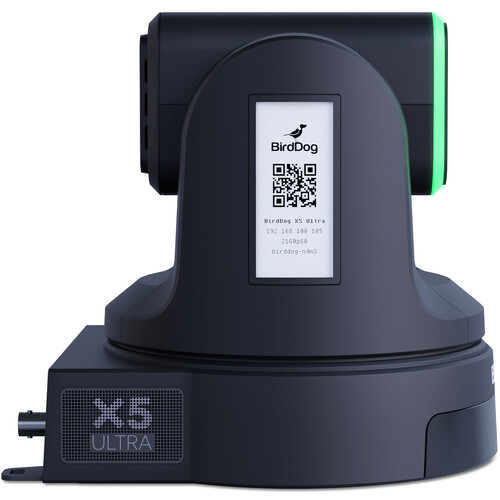

E-ink Label. Get Inked.
The dual, always-on e-ink labels on the X5 Ultra are a game-changer. From network addresses for easy access to controls to customisable logos* to complement your brand image, this cool feature ensures that your set-up is clear and each camera is easily identifiable even when the power is off.
One Ring. To Filter them all.
Adding an ND Filter or Polariser to X5 is a cinch with its 49mm filter ring. Get rid of pesky reflections, dial in your highlights and make your next production feel more ‘Hollywood’.
Hobbit TikTok filter not supported. Sorry.
Advanced features in BirdUI.
BirdUI gives complete access to every function of your X5 Ultra, all within a beautiful and intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra.BirdUI adds features including a dashboard for monitoring the camera and light/dark modes to suit your production environment.
Image Sensor Sony 1/2.8” CMOS -ULTRA HD
Lens f=5.4mm – 104mm
Optical Zoom 20x
Video Format 2160p @ 60, 59.94, 50, 30, 29.97, 25fps
1080p @ 60, 59.94, 50, 30, 29.97, 25fps
720p @ 60, 59.94, 50fps
Horizontal angle of view 56.6º (W) – 3º (T)
Vertical angle of view 32.5º (W) – 1.7º (T)
Diagonal angle of view 64.7º (W) – 3.5º (T)
Aperture F1.6 ~ 3.6
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority,
Manual, BLC, WDR
Shutter Speed 1/1 – 1/10000s
Backlight Compensation YES
Digital Noise Reduction 3D Noise Reduction
SNR >50dB
Effective Pixels 8.46MP
Filter Ring Ø49mm
AI Tracking Present
MECHANICAL
Pan/Tilt Rotation ±170º, -30º ~ +90º
Pan Control Speed 0.1 -200º/sec
Tilt Control Speed 0.1 -200º/sec
Preset Number 128 Presets, Speed Adjustable
Integrated Tally Light Halo Style, RGB
Pan/Tilt Drive System Ultra-fine Drive
Quietness Max 28dB at full speed pan

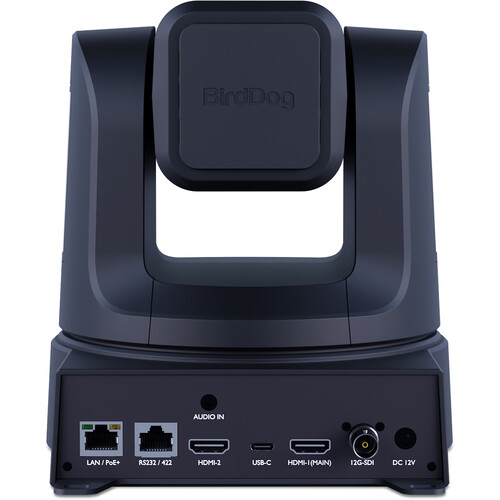

I/O INTERFACE
Video Output Interfaces 12G-SDI, HDMI 2.0, HDMI 1.4,
USB-C UVC 1.1, 1Gb Network
Video Compression Formats H.264, H.265
Network Interfaces 1GbE adaptive Ethernet port;
POE+ IEEE 802.3a
Encoder Network Protocols NDI®-HX2, NDI®-HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols NDI®- HX2, NDI®-HX3
Decoder supported resolutions 1080p @ 60 / 59.94 / 50 /30 / 29.97 / 25fps
720p @ 60 / 59.94 / 50fps
Control Interfaces 1GbE Ethernet, RS232 (input & output),
RS422, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400,
RS422, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400,
VISCA-IP, NDI®
Analogue Audio 3.5mm (1/4″) Mic In / Line In (Stereo)
Digital Audio Embedded with Main & Secondary HDMI,
12G-SDI, Network Video, USB (UVC)
GENERAL PARAMETER
Environmental Operation Internal
Input Voltage DC 12V, PoE+ IEEE802.3at
Input Current 2.0A (Max.)
Power Consumption 18W (Max.)
Working Temperature 0ºC ~ +40ºC
Working Humidity 20% ~ 80%
Dimension (W*H*D) mm 185.7*171.9*200.90mm (before packing)
271*275*245mm (after packing)
Dimension (W*H*D) in 7.31*6.76*7.90in (before packing)
10.6*10.8*9.6in (after packing)
Net and Gross Weight 2.31kg/3.76kg (Net/Gross weight)
4K Brilliance: X5 Ultra features next-level image quality with the latest Sony image sensor, ensuring stunning visuals for every production.
Halo Tally: X5 Ultra sports the most visible and effective Tally system available. Up front, with a large, daylight-visible border keeping talent looking directly at the camera.
AI Tracking: X5 Ultra steps up AI capabilities with advanced motor control and subject tracking for more natural and predictable movement.
NDI – HX3: X5 Ultra has the highest possible NDI® HX3 performance, even in 4K60. Superior image quality and low latency are guaranteed.
NDI – HX Decoder: A simpler, integrated solution that makes it so much easier to incorporate a teleprompter, return feed, or confidence monitoring.
Always-on dual e-ink label: Easily load camera details, name, and IP address for faster set-up, in-production management, and crew communication.
Dual Network Output: X5 Ultra combines NDI HX and SRT/RTMP protocols for seamless, on-premises and remote/CDN connectivity, ensuring ultimate flexibility in both streaming set-ups and distribution.
Serial Control: Take control effortlessly with older control protocols, seamlessly integrating with your existing infrastructure.
USB Webcam: X5 Ultra features USB-C for connecting directly to Zoom, Teams, and most apps that support a USB UVC input.
Control support. The X5 Ultra ships with its own IR remote, plus hardware control support for BirdDog PTZ Keyboard, Skaarhoj, and more.
BirdDog Apps. X5 Ultra is compatible with BirdDog Central and BirdDog Cloud.
