Freefly 910-00717

Overview
The Adjustable Monitor Mount is a versatile and lightweight option for attaching a monitor, phone clamp, or tablet clamp to your Freefly camera body. It features a proprietary tilt hinge that does not require adjustment over time, ensuring a consistent feel. The mount is also compatible with Freefly NATO Rails when used with a NATO Clamp quick-release system.

Designed specifically for Freefly Ember and Wave cameras, the mount can provide up to 135 degrees of tilt, with a minimum of 100 degrees depending on the set up. It also includes two removable anti rotate pins for Arri and SmallHD standards, which can be stored on the underside of the mount when not in use. The mount can be attached to the camera or a NATO clamp using a ¼-20 captive screw, and can be used with the Dual Monitor Height Booster for a monitor and phone set up. With its low profile and tool-free tilt hinge, the Adjustable Monitor Mount is a convenient and reliable option for monitoring on set.

Included in box

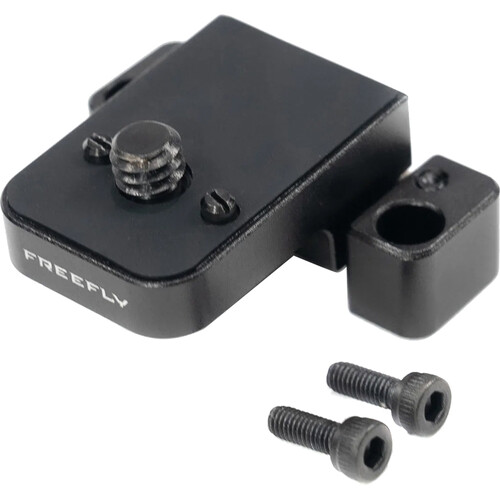

1 x Adjustable Monitor Mount
2 x M3x8mm Screws

About the Freefly 910-00717
The lowest profile, lightest weight monitor mount we have ever made. Featuring a proprietary, tool-free tilt hinge designed to keep consistent feel over time without needing adjustment.

We couldn’t find a monitor mount hinge that we loved, so we made our own. Use the Adjustable Monitor Mount to attach a monitor, phone clamp, or tablet clamp directly onto your Freefly (Ember or Wave) camera body. Or, use it with our NATO clamp and rail system to quick release from a camera (or any camera cage). Once a monitor is attached, you can adjust the viewing angle without tools! And the best part is that our proprietary hinge will maintain a consistent feel and not loosen up over time.

The monitor attaches to the mount using a standard 1/4”-20 thread. It also includes removable anti rotate pins for Arri and SmallHD standards, plus a grippy silicon mounting surface. The anti-rotate pins can be stored underneath the mount when not in use, and are designed to be used one at a time for either standard.

Two M3 fasteners are included to attach the mount directly to the camera or to a NATO clamp. The double mount point design prevents unwanted spinning.

Body Material Aluminium
Hinge Material Stainless Steel
Mounting Pad Material Silicone
Physical dimensions: 40.0 x 35.5 x 18.4mm (1.58 x 1.38 x 0.72″)

Works seamlessly with Freefly NATO Rails when combined with NATO Clamp quick-release system

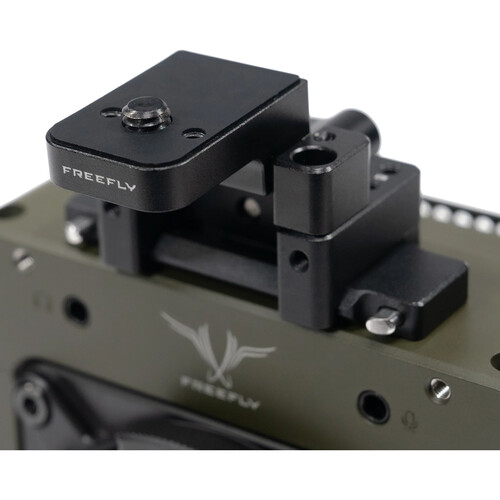

Direct mountable to top of Ember or Wave Camera
Proprietary tilt hinge doesn’t loosen up over time
Two removable anti rotate pins, one for Arri and one for SmallHD standards
Store anti-rotate pins on underside of mount when not in use
Up to 135deg of tilt depending on set up, minimum 100deg
¼-20 captive screw to attach monitor/accessory
Use with the Dual Monitor Height Booster for Monitor + Phone set up
