IDX CUE-H180 Battery

Overview
The CUE-H180 V-Mount battery is designed to meet the high power demands of digital cinematography and broadcast cameras. With a robust 179Wh capacity, it can handle up to 12A/155W loads, making it a reliable choice for professionals. It also features a single 80W D-Tap output for powering accessories and is fully compatible with all ENDURA V-Mount chargers and accessories.

In addition to its high performance, the CUE-H180 is also designed with safety in mind. It meets Japans stringent PSE safety regulations and has battery circuit protection to guard against common causes of misuse. The use of high-grade Lithium Ion cells ensures its reliability, while also being environmentally friendly and recyclable.

Summary
Battery Capacity: 179Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.8v
Included in box
1 x Battery

About the IDX CUE-H180 Battery
The CUE-H180 V-Mount battery answers to the power demands of digital cinematography and broadcast cameras where high current loads of 12A/155W are standard. The CUE-H180 provides a robust 179Wh capacity with the ability to comfortably handle 12A/155W loads, as well as a single built-in D-Tap output capable of taking a 80W load for powering accessories.

Battery Capacity 14.8V, 12.04Ah, 179Wh*
Max.Output Voltage 16.8V DC
Nominal Voltage 14.8V DC
Maximum Discharge Current 12A/155W
D-Tap 80W each
End Voltage 11.2V
Battery Protection Over charge, Over discharge, Over current
Ambient Temperature To charge: 0°C ~ 40°C
To discharge: -20°C ~ 45°C
To store: -20°C ~ 45°C (less than 1 month)
Dimensions 97(W) x 146(H) x 59(D) mm
Weight 1050 grams approx.

179Wh capacity
Capable of handling up to 12A/155W loads

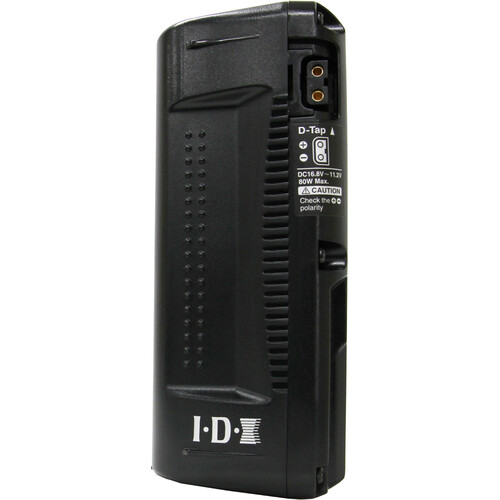

(1) 80W D-Tap output (unregulated)
4 Power Indicator LEDs
Lithium Ion V-Mount battery designed to meet Japans stringent PSE safety regulations for enhanced mechanical and electrical safety
Battery circuit protection ensures the CUE-H180 is fully protected against common causes of misuse, guarding against over-charge, over-discharge, and over-current
The highest grade Lithium Ion cells are used to ensure the CUE-H180 is one of the most reliable batteries on the market
Fully compatible with all ENDURA V-Mount chargers and accessories
Environmentally friendly and recyclable
