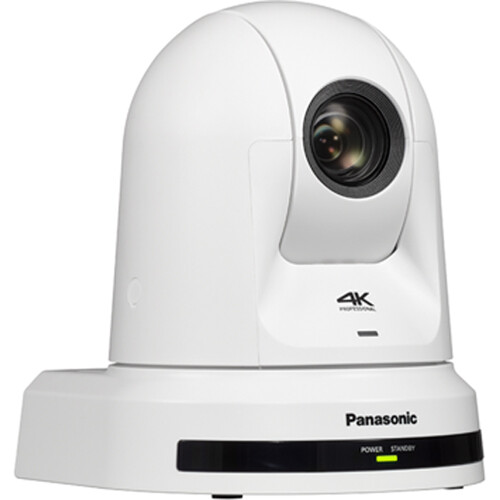

Panasonic UE50 4K PTZ Camera – White

Overview
The AW-UE50 is a versatile and high-performing PTZ camera that offers a wide range of features for professional video shooting. It boasts 4K resolution, 24x optical zoom, and a new direct drive system for improved responsiveness and quietness. It also supports various protocols, including NDI|HX version 2 and SRT, for secure and stable streaming. With its compact design and quiet operation, the UE50 can be used in any video shooting setting, making it a popular choice for live streaming events, studio setups, and educational or corporate installations.

The UE50 also offers excellent system flexibility, allowing for easy installation and operation, even for inexperienced staff. It can be controlled and managed from a single PC or controller, and can also be used as a USB camera or directly upload videos to live streaming services. Additionally, the UE50 comes equipped with a wide-angle lens, optical image stabilisation, and a powerful processor for smooth and stable shooting. It also supports a variety of output interfaces, including 4K and HD analogue, NDI, SRT, and IP, making it a versatile and reliable choice for any professional video production.

Summary
Focal Length: 4.12mm – 98.9mm
Max Aperture: f/4.0
Lens Zoom: 24x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: MOS
Video Outputs: HDMI
Weight: 0-2kg
Included in box
1x Panasonic 4K PTZ Camera – White

About the Panasonic UE50 4K PTZ Camera – White
Free Auto Tracking Software available here

Key Features:

Maintain framing in a variety of situations
Stable shooting even inside shots
No connection to external equipment is required, allowing easy installation in classrooms and auditoriums
Please note: this software is a stripped down software and is run on the camera and not to be mistaken as a replacement for chargeable software that runs on a PC or Network.

The UE50 has a newly-designed and compact body with a weight of only 1.8kg, which makes it very easy to handle and to install in any kind of setting, especially when positioning the camera on trusses or ceilings.

The UE50 has been designed to support the following markets:

Live streaming events
Entry-level studio configurations
Higher education
Corporate installs

Single-cable solution

The UE50 also offers PoE+ support for camera power, control and video transmission over a single cable.

Direct drive system

The UE50 features the direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal direction, with a reduced operating sound of NC25 or lower. Direct drive also opens up more opportunities for PTZ operation including faster, precise movement and with higher accuracy in preset positioning – making it Panasonic’s fastest, quietest and most accurate PTZ yet.

Online Video Content support

When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the UE50 in the same way you would an USB camera. The UE50 is also equipped with Privacy Mode, which positions the lens towards the back when on standby.

Upgraded 4K sensor

The UE50 features a new 1/2.5-type 4K MOS sensor that produces stunning UHD video with true 4K resolution of 1,500 TV lines in UHD. The UE50 supports 3G SDI, HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature.

Wide-Angle Lens

The AW-UE50 introduces a new wide-angle lens with a 74.1° field of view and a 24x optical zoom, enabling a wide area to be shot from a limited installation space, in addition to maintaining high image quality at high zoom ratios. This allows shooting in large indoor spaces. Intelligent zoom extends its capabilities to 28x in UHD and 36x in Full-HD.

Optical Zoom and Image Stabilisation

Optical Image Stabilisation (OIS) has been added to the unit to ensure smooth pan-tilt movement when in busier environments or moving or be placed onto a robotic system for example.

New Processor

The AW-UE50 includes the powerful Venus engine processor, making the PTZ incredibly responsive and capable of increased video processing tasks for higher image quality and lower latency.

4K & HD Analogue Outputs

The AW-UE50 supports up to 4K 30p/25p video at 3840 x 2160 to provide professional and high-quality shooting of moving images, as well as a wide variety of output interfaces such as 3G-SDI, HDMI, and IP – which can be activated simultaneously for HD and 4K workflows.

New NDI, SRT & IP Outputs

There is also a wide variety of IP transmission protocols available. Out of the box, Secure Reliable Transport (SRT) is supported to maintain stability while transmitting high-quality video, even in unstable network environments. SRT allows video distribution over public internet in a secure and reliable way, as it offers encryption and as lost packets are automatically detected and resent.

The UE50 also supports the high-efficiency, low bandwidth NDI|HX version 2, which is available via an optional paid-for upgrade. This enables video transmission at low bitrates over a single LAN cable.

RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.

New Web Interface & Simplified Workflows

A brand-new web interface has been introduced for professional operators working within darker environments to easily navigate the advanced GUI for operators.

Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software, and its automatic tracking software for presentations and lectures, enabled by face recognition and human body detection.

Provides hybrid online/offline environment.

Standard models suitable for use in online classes and briefing sessions

Remote cameras enhance the visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE50/UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE50/UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilise it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilise online video streaming more frequently or enhance the quality of online video streaming.

Camera unit performance and functions that assure high-quality video streaming

Featuring 4K resolution, wide-angle coverage of up to 74.1° horizontal and max. 24x optical zoom, the UE50/40maintains “the ambience of hall” intact in streaming videos.The Auto Tracking Software and image stabiliser function contribute to stable video streaming.

Unit size, quietness and stability for anywhere use

The UE50/40 is lightweight and compact. The new direct-drive motor with an operating sound of NC25 or lowerachieves high stopping position precision and enables accurate camerawork, so it can be installed and used at anyvIdeo shooting sites. The UE50/40 supports NDI®|HX*1 and SRT*2 to assure stable and safe streaming of videos.

*1 In this instance, NDI® is used to indicate low latency with high bandwidth NDI®,NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI®|HX version 2 and Full HD output.
*2 Abbreviation for Secure Reliable Transport

Excellent system flexibility to achieve smart wiring and smooth operation

By using a Panasonic remote camera controller or linking with the software makes, the camera can be easilyinstalled, managed and operated. The UE50/40 is suitable for replacing an existing camera or for expandingthe present system.

Comprehensive
Power Requirements DC 12 V ± 10 % (10.8 V to 13.2 V ) (Supplied AC adapter)
PoE+ IEEE 802.3 at compliant：DC42-57 V (Camera Input)
Current Consumption 1.8 A (AC adaptor input) , 0.6 A (PoE+ power supply)
Mass Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)
External dimensions Width 160.0 mm × Height 192.1 mm × Depth 166.0 mm (6.299 inches × 7.563 inches × 6.535 inches)
(Excluding protrusions, cable cover, ceiling mounting bracket)
Camera part
Image Sensors 1/2.5-type MOS×1
Lens Electric 24 x optical zoom F1.8 ～ F4.0 (f = 4.12 mm ～ 98.9 mm , 35 mm conversion : 25.0 ～ 600.0 mm)
Zoom magnification Optical zoom: 24 x
i.Zoom UHD 28 x , FHD 36 x
Digital extender zoom: 1.4 x , 2 x
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
Vertical angle of view: 46.0° (wide) to 1.9° (tele)
Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Horizontal Resolution UHD: 1,500 Typ (Center area)
FHD: 1,000 Typ (Center area)
Output Format SDI: HD:
1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i,
1080/29.97p(Native), 1080/25p(Native),
1080/23.98p(over59.94i),
1080/29.97psF, 1080/25psF, 1080/23.98psF,
1080/24p(Just), 1080/23.98p(Native),
720/59.94p, 720/50p
HDMI: 4K:
2160 / 29.97p (Native), 2160 / 25p (Native), 2160 / 24p (Just), 2160 / 23.98p (Native)
HDMI: HD:
1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i,
1080/29.97p(Native), 1080/25p(Native),
1080/23.98p(over59.94p), 1080/24p(Just),
1080/23.98p(Native), 720 / 59.94p, 720/50p
Output
Video Output HDMI: HDMI 1.4 connector, 4:2:2 / 10 bit
3G-SDI OUT: SMPTE 292 M , 424 M / 75 Ω (BNC×1)
Input/Output
Input/Output Connector LAN: LAN terminal for IP control (RJ-45)
RS-422: CONTROL IN RS422A (RJ-45)
MIC/LINE input: AAC compatibility (compatible with IP only), Φ3.5 mm stereo mini jack
During MIC input:
Input level: -40 dBV (0 dB = 1 V / Pa, 1 kHz),
Supply voltage: 2.5 V ± 0.5 V (plug-in power compatible)
During LINE input:
Input level: -10 dBV
Rotating platform part
Pan operating range ± 175°
Tilt operating range -30° ～ 90° *1
IP Streaming
Image Streaming Mode JPEG (MJPEG)、H.264、H.265、NDI®/HX*2,3,4,5 version 2 (H.264)
Image resolution 1920×1080, 1280×720, 640×360, 320×180
Image Transmission Setting H.264:
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame rate: [At 60Hz] 5fps / 15fps / 30 fps / 60 fps , [At 50Hz] 5 fps / 12.5 fps / 25 fps / 50 fps
Max Bit Rate: 512 kbps / 768 kbps / 1024 kbps / 1536 kbps / 2048 kbps / 3072 kbps / 4096 kbps /
6144 kbps / 8192 kbps / 10240 kbps / 12288 kbps / 14336 kbps / 16384 kbps / 20480 kbps / 24576 kbps /
H.265:
Transmission Type: Unicast port(AUTO), Unicast port (MANUAL), Multicast port
Frame rate: [At 60Hz] 30 fps / 60 fps , [At 50Hz] 25 fps / 50 fps
Max Bit Rate: Same specifications as H.264
NDI®/HX*5 version 2:
Transmission Type: TCP / UDP , Unicast / Multicast

4K 25/30p and 24x Optical Zoom
New Direct Drive System for improved responsiveness and quietness
Supports NDI|HX version 2 and SRT*1 protocol
Excellent system flexibility to achieve smart wiring and smooth operation
Unit design makes the lens unnoticeable.
Equipped with Privacy Mode which positions the lenstoward the back when on standby.
Equipped with Optical Image Stabiliser.(OIS)
Operatable from Web GUI.

Provides a stable hybrid environment for connecting online and offline

4K resolution, wide angle and high-magnification zoom for delivering “the ambience of hall.”
Auto Tracking Software for reliable following and capturing of the speaker.
Secure and stable streaming protocol for reduced risk of communication trouble.Smooth playback of high-quality videos.

Unit size and quietness for flexible use at any video shooting sites

Compact dome-shape design blends in with the surroundings. Light weight and small size give added flexibility in camera installation.
Quiet operating sound allows the use of the camera in any situations.
Image stabiliser ensures stable video shooting.

Excellent system flexibility to achieve smart wiring and smooth operation

Easy installation and operation even for inexperienced staff or small staff.
Single PC or controller can manage and control multiple cameras.
Use as a USB camera.
Can upload video directly to live streaming service.
