SHAPE BXLPE J-Box Battery Kit for Canon 5D, 7D, LP-E6

Overview
The V-Mount Lithium-Ion Rechargeable Battery offers high capacity and reliable quality, with a long operating time of 98Wh (14.8V) and 6.8Ah. It supports up to 12A continuous draw and features an intelligent control and protection circuit for temperature, current, and voltage. This battery has no memory effect and is environmentally friendly. It also has D-Tap and USB ports made of PPS aircraft-grade materials, as well as a built-in USB interface for charging electronic and mobile devices. The 4-level LED indicator lights display the charging status, and it comes with a 2-year limited warranty against all manufacturer defects. It is compatible with all broadcast video cameras using a standard V-Mount Battery Plate and can power a variety of cameras, including standard and high-definition broadcast cameras, 4K digital cinema and 3D camera setups, DSLRs, and handheld camcorders.

The J-Box is a versatile accessory that is compatible with the Canon 5D, 7D, and LP-E6 series, as well as the Blackmagic Pocket Cinema Camera 4K. It features a V-Mount Battery Plate with Safe Lock, a 15mm Rod Mount with locking and angle adjustment system, and threaded holes for mounting on a cheeseplate. The J-Box also has LED indicators for power features and can support up to 100W power consumption from the device. It comes with 4 outputs, including 8V:5A:40W, 12V:5A:60W, 16.8V:6A:100W, and USB 5V:4A. The cables are compatible with the Canon 5D, 7D, and LP-E6 series, and the D-Tap output operates at 16.8V:6A, while the USB output operates at 5V:4A. The J-Box can be used with a BP Charger and power devices, and it also comes with a 15mm Rod Mount System Device, including a Delta Plate and knob system for adjusting its position.

Summary
Battery Capacity: 98Wh
Battery Mount / Type: V Mount
Charging Ports: 1

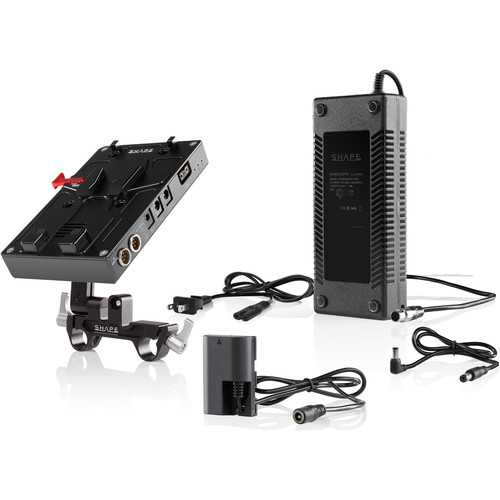

Included in box
1x J-Box Power and Charger
1x Power Supply
1x Cable Output Connector
1x Cable Connector
1x 15mm Rod Mount Device
1x Removeable Delta Plate

About the SHAPE BXLPE J-Box Battery Kit for Canon 5D, 7D, LP-E6
**PLEASE NOTE: Camera and Stand are not included. Images are for display purposes only**

J-Box

Comaptible with the Canon 5D, 7D and LP-E6 Series and Blackmagic Pocket Cinema Camera 4K, the J-Box comes equip with a V-Mount Battery Plate with Safe Lock, a robust 15mm Rod Mount with locking and angle adjustment system, threaded holes at the back of the plate for mounting on a cheeseplate, and LED Indicators for power features. When the J-Box is plugged in, you can safely disconnect and reconnect the battery without powering down your rig, the J-Box supports up to 100W power consumption from the device. The J-Box is small size and lightweight, and comes with 4 outputs including: 8V:5A:40W, 12V:5A:60W, 16.8V:6A:100W and USB 5V:4A.

Connectors

The cables are compatible with the Canon 5D, 7D and LP-E6 series. The output cable is compatible with 8V or 12V outputs. The D-Tap output operates at 16.8V:6A, whilst the USB output operates at 5V:4A.

Charger and Power Devices

The BP Charger input can be used simultaneously with the battery charging. The AC Adapter input is to be used without a battery.

15mm Rod Mount System Device

A Delta Plate is included to mount on the J-Box main unit, whilst the knob system is used to lock and adjust the position of the J-Box unit.

Compatibility Canon 5D, 7D, LP-E6 Series
Blackmagic Pocket Cinema Camera 4K
Materials Aluminium
Product Dimensions (WxHxL) 5.51 x 3.54 x 0.79inch / 14 x 8.99 x 2.01cm
Product Weight 2.31lbs / 1.05Kg
Packaging Dimensions (WxHxL) 11.5 x 4.5 x 3.5inch / 29.21 x 11.43 x 8.89cm
Packaging Weight 1.07lbs / 2.36Kg
Dummy Battery Cable Length 30″
Warranty 2 Years

High capacity, reliable quality, long operating time
98Wh (14.8V) 6.8Ah V-Mount Lithium-Ion Rechargeable Battery
Supports up to 12A Continuous Draw
Intelligent Control and Protection Circuit
Temperature, Current and Voltage Protection
No Memory Effect, Environmental Protection
D-Tap and USB Ports made of PPS Aircraft-Grade Materials
Remote Fault Battery Analysis Available
Built-In USB Interface for charging electronic and mobile devices
4-Level LED Indicator Lights displaying the charging status
2-year Limited Warranty against all manufacturer defects
Standard working time on full charge is approximately 6 hours for cameras like Panasonic EVA1
Compatible with all the broadcast video cameras using a standard V-Mount Battery Plate
Powers any standard or high-definition broadcast cameras, 4K digital cinema and 3D camera setups, DSLRs and handheld camcorders that accept V-Mount battery
