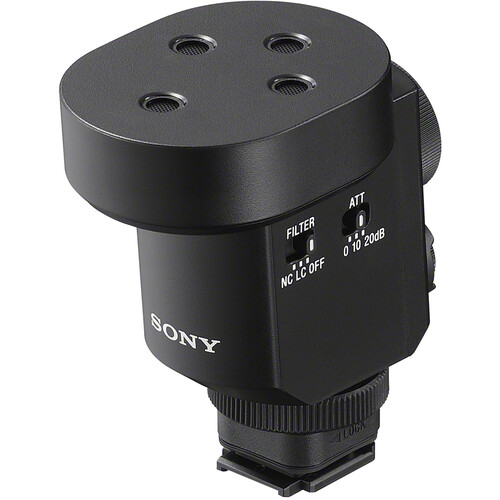

Sony ECM-M1 Digital Shotgun Microphone

Overview
The ECM-M1 is a compact shotgun microphone that utilizes beamforming technology and advanced digital processing to provide eight different audio recording modes. These modes include stereo and can be easily selected using a dial on the rear of the microphone. The microphone also features a digital noise cut filter and a low-cut filter for reducing noise, as well as a wind screen for reducing wind noise. It is compact and lightweight, making it ideal for on-the-go shooting, and is also dust and moisture resistant for reliable operation.

Beamforming technology, with its four discrete microphone capsules and precision algorithms, allows for maximum pickup sensitivity in desired directions while reducing it in others. This results in a highly versatile and high-performing microphone that is suitable for a wide range of video shooting situations. The controls are simple and easy to use, making it a convenient choice for any videographer or filmmaker.

Summary
Direction:
Omnidirectional
Unidirectional
Included in box
1x Sony ECM-M1 Digital Shotgun Microphone
1x Windscreen
1x Fur type noise reducing windscreen, MI Shoe cap
1x Protector cap for Microphone MI Shoe connector, Bag
1x Convenient carrying bag for mic

About the Sony ECM-M1 Digital Shotgun Microphone
Compact shotgun microphone with eight audio recording modes

Completely redefines shotgun microphone performance with beamforming technology that provides the world’s first1 eight dial-selectable audio recording modes in a compact microphone with outstanding versatility and audio quality.

Versatile and compact, with superb sound

The ECM-M1 uses beamforming technology and advanced digital processing technology to provide eight audio recording modes including stereo for outstanding versatility and superb sound quality in a wide range of video shooting situations.

Eight audio recording modes in one versatile microphone

Beamforming technology combines four discrete microphone capsules with precision algorithms, to maximize pickup sensitivity in the desired directions while reducing it in others. The result is an incredibly compact and versatile microphone with high performance even in challenging audio environments.

Simple controls for easy setting and operation

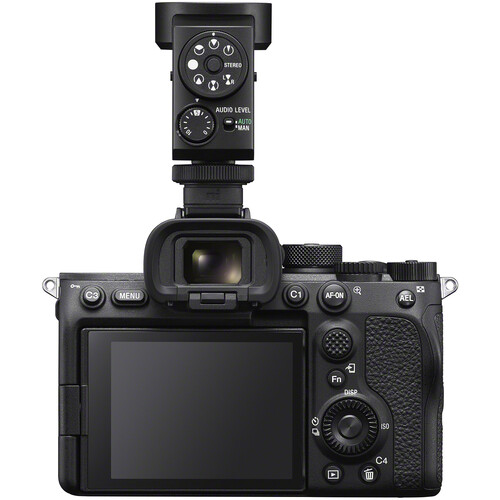

Simply turning a dial on the rear of the microphone allows easy, intuitive selection of pickup patterns, and a lock button in the center prevents accidental changes. Other controls are also straightforward and easy to understand and operate.

Operating Temperature 0 ℃ to 40 ℃ (32 °F to 104 °F)
Type Back Electret Condenser Microphone
Shoe type Multi Interface Shoe
Power Supply from Main Unit Multi Interface Shoe
Monaural / Stereo Monaural / Stereo
Directivity Super-directional/unidirectional/omnidirectional/Super-directional (Rear)/Super-directional (Front+Rear)/Super-directional (Front/Rear)separate/STEREO/Ultra-directional
Frequency Response 40 Hz to 20 000 Hz
Microphone Channel Audio Output Analog 2ch / Digital 4ch
Front sensitivity -20 dBFS (0.1 Pa, 1 kHz)¹⁰
Intrinsic noise 14 dB SPL or less (0 dB = 2×10⁻⁵ Pa)¹⁰, ¹¹, ¹²
Maximum Input Sound Pressure Level 120 dB SPL¹⁰, ¹³
Dimension(Approx.) W 40.0 mm x H 72.2 mm x D 64.4 mm (1 5/8 inches x 2 7/8 inches x 2 5/8 inches) (excluding knob, wind screen)
Weight(Approx.) 65 g (2.3 oz) (only main unit)
Notes 1. As of the July 2023 product announcement. Sony survey of microphones for cameras.
2. Compatible camera only. Please check the support page for compatibility information.
3. Dimensions and weight are approximate.
4. The -20dB safety Recording cannot guarantee all clipping noise will be prevented, when capturing especially loud audio.
5. Cameras with an MI shoe that are not compatible with the digital audio interface should be connected in analog mode. Set DIGITAL/ANALOG switch on the rear panel to ANALOG, and the digital audio signal will be automatically converted to analog.
6. Not guaranteed to be 100% dust and moisture proof. Some moisture will not cause the microphone units to fail, but using them while wet can affect sound quality. Remove dirt and moisture with a clean, dry cloth.
7. The sound may be quieter than the other directivity modes when shooting in environments with significant echoes, such as small rooms, or when the distance between the microphone and subject is far.This mode applies the adaptive beamforming technology. For more details on adaptive beamforming technology, please refer https://helpguide.sony.net/ilc/2330/v1/h_zz/index.html
8. Additional Information: Beamforming technology works by precisely controlling the sensitivity of multiple mic capsules to create a variety of directivity patterns. This microphone uses digital signal processing to combine the output of four mic capsules, maximizing pickup sensitivity in the desired direction while reducing sensitivity in all other directions so that the desired sound is picked up clearly while unwanted sound is effectively attenuated.
9. Features and Specifications are subject to change without prior notice.
10. Acquired by setting the AUTO/MAN switch and the ATT switch to “AUTO” and “10dB,” respectively.
11. Acquired by setting the DIGITAL/ANALOG switch to “DIGITAL.”
12. Directivity mode dial=Ultra-directional
13. Equivalent sound pressure level value converted from the input level value that is acquired when 1% waveform distortion is produced by 1 kHzoutput signals from the microphone. (0 dB = 2×10-5Pa)

Beamforming8 technology employs four mic capsules
Versatile selection of eight audio recording modes
Simple and easy controls of recording modes with the dial on the rear
Advanced digital signal processing and the digital audio interface for high-quality audio2
Digital noise cut filter for clear sound, and low-cut filter for reducing noise
Compact size and lightweight for great shooting freedom and mobility
Supplied wind screen for reducing wind noise
Omni-directional backup safety recording on channels 3 and 42
Multi Interface Shoe support for battery-free & cable-free operation
Dust and moisture resistant6 design for reliable operation
