Sony PDT-FP1 Portable Data Transmitter

Overview
The PDT-FP1 is a portable data transmitter designed for professional use. It offers high-speed and stable communication with simple operability, making it ideal for creators who need to deliver their vision quickly and efficiently. This is achieved through its optimized antenna design, heat dissipation system, and versatile input interfaces, which allow for fast data transmission and reliable performance in various environments.

The PDT-FP1 also offers uninterrupted power supply with two USB Type-C terminals, expandable storage up to 1TB, and a variety of features for photographers and videographers, such as automatic file transfer and live streaming. It is designed for professional setups, with a 1/4-inch tripod screw hole and a strap hole for easy mounting and cable management. With its advanced features and capabilities, the PDT-FP1 is the perfect tool for creators looking to deliver their vision with speed and efficiency.

Included in box
1x Portable Data Transmitter

About the Sony PDT-FP1 Portable Data Transmitter
Portable data transmitter for creators

Deliver your vision with the PDTFP1. Integrating optimal antenna design, heat dissipation structure, and versatile input interfaces, it delivers high-speed and stable communication that fully caters to professional demands, all while offering simple operability.

High-speed transmission

Optimized antenna design for high-speed data transmission

The antenna design is optimized to maximize reception sensitivity, enabling high-speed, low-latency communication over a wide range of bands including LTE, and both 5G Sub6 and mmWave1. Increased reception sensitivity extends the high-speed communication coverage area by up to 10%2, while offering up to 30% faster communication speeds2.

Many compatible communication bands

With its optimized antenna design and wide variety of compatible communication environments, including both local and private 5G, the PDT-FP1 enables fast and efficient data transmission worldwide3. It also supports Dual SIM4for transmitting data while automatically switching to a stronger network5.

Heat dissipation system for enhanced reliability

To ensure reliability in challenging environments, the PDT-FP1 incorporates a newly developed cooling fan and a duct structure designed for heat dissipation and quiet operation. It effectively prevents thermal shutdown, even in temperatures as high as 40℃ (104℉), for continuous transmission during shooting.

Uninterrupted power supply

The PDT-FP1 is equipped with two USB Type-C® terminals that support USB PD (Power Delivery). One handles both data communication and charging, while the other is solely for charging. With these terminals, the PDT-FP1 can be charged while transferring data, allowing you to shoot without worrying about the battery level

Designed for professional setups

Versatile input interfaces

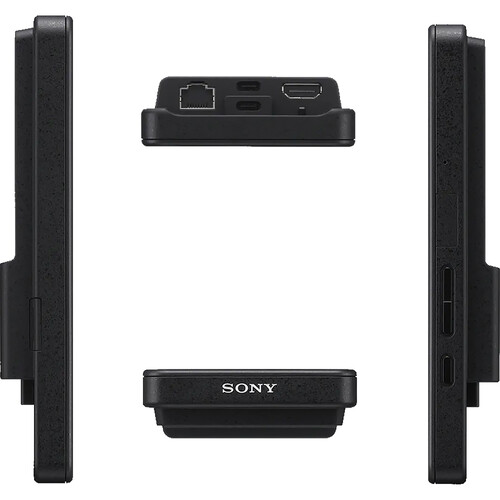

The PDT-FP1 offers versatile input interfaces, ensuring fast and stable data communication. As well as a USB Type-C® terminal for data transfer, a wired LAN terminal can connect to a compatible camera for data transfer, and an HDMI Type A terminal is also provided for video data transmission.[1] LAN [2] HDMI [3] USB Type-C (For data transfer)

Expandable storage

The PDT-FP1 is equipped with 256 GB of internal storage, expandable up to 1 TB with the optional microSD card. This allows for stable data transfers while ensuring ample storage space.[1] 256GB [2] Up to 1 TB

Quick file transfer for photographers

Effortlessly transfer files to a designated FTP server orCreators’ App by connecting compatible Sony cameras via USB or Ethernet. Once the initial setup is complete, the ‘Camera Wired Connection’ setting will automatically transfer files without the need to configure settings each time?.

File transfer and live streaming for videographers

The ‘Camera Wired Connection’ setting offers automatic file delivery to C3 Portal and Ci Media Cloud for improved workflow®. Also, high-quality live streaming is possible by using the optional CBK-RPU7 and M2 Live®. Together with its large 6.1-inch display and “Network Visualizer,” transfer status can be visibly monitored before and while shooting.

Professional setup

The PDT-FP1 features a 1/4-inch tripod screw hole? on the rear for attaching to a tripod or camera, and a strap hole for effective cable management.[1] ¼-inch threaded hole [2] Strap hole

Input interface
USB Type-C® terminal (Data transfer) USB Type-C® (SuperSpeed USB 5 Gbps (USB3.2))
USB Type-C® terminal (CHARGE) USB Type-C®
HDMI® connector Type-A: 3840×2160 (60p/50p/30p/25p/24p), 1920×1080 (60p/50p/30p/25p/24p),
1280×720(60p/50p/30p/25p/24p), 720×480 (60p), 720×576 (50p), 640×480 (60p) [vfn_11]
LAN Terminal 10BASE-T, 100BASE-TX, 1000BASE-T
Cooling fan
Type DC FAN
Thickness of fan Approx. 5.0 mm (Approx. 0.2 inch)
Air flow Approx. 51 L/min [vfn_12]
Heat sync
Size Approx. 37.15 mm x 19.3 mm x 7.3 mm (Approx. 1.5 inch 0.8 inch 0.3 inch)
Operating temperature
Operating Temperature 0 – 40 ℃ / 32 – 104 °F
Supplied Accessory –
Network
LTE Band 1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39,
40, 41, 42, 46, 48, 66, 71 [vfn_8]
Wi-Fi® IEEE802.11a/b/g/n/ac/ax, 2.4/5/6GHz [vfn_7]
Wi-Fi tethering max. number of clients Up to 10 devices
5G (Sub6) Band NSA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78, n79 [vfn_8]
SA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 [vfn_8]
5G (mmWave) Band n257, n258, n260, n261 [vfn_8]
Maximum throughput (5G) Uplink: Up to 1.1 Gbps / Downlink: Up to 8.1 Gbps [vfn_9][vfn_10]
Accessibility
Accessibility Select to Speak, TalkBack, Text-to-speech output, Font size, Display size, Dark theme,
Magnification, Colour correction, Colour inversion, Large mouse pointer,
Remove animations, Accessibility Menu, Switch Access, Click after mouse pointer stops moving,
Auto-rotate screen, Touch & hold delay, Time to take action (Accessibility timeout), Vibration & haptic strength,
System navigation, Mono audio, Audio balance, Caption preferences, High contrast text, Shortcut from lock screen
Power
Charging time Approx. 115 minutes [vfn_14][vfn_15]
Power delivery Yes (USB Power Delivery)[vfn_13]
Operating time (FTP transfer via USB in LTE) Approx. 4 hours [vfn_15][vfn_16]
Operating time (Video upload via HDMI) Approx. 2 hours [vfn_17][vfn_18]
Standby time (LTE) Approx. 600 hours [vfn_17][vfn_19]
Standby time (5G SA) Approx. 450 hours [vfn_17][vfn_19]
General
Dimension Approx. 6.7 inch x 3.2 inch x 1.1 inch (HxWxD)
Weight Approx. 10.9 oz.
OS Android™ 13 [vfn_1]
CPU Snapdragon® 8 Gen 2 Mobile Platform [vfn_2]
Internal memory (RAM/ROM) 8 GB / 256 GB [vfn_3]
EXTERNAL MEMORY Up to 1 TB (microSD/microSDHC/microSDXC) [vfn_4][vfn_5]
Battery Lithium-ion battery (5000 mAh)
2D Code Scanner Yes
SIM TYPE nanoSIM / eSIM [vfn_6]
Dual SIM specification DSDS
Bluetooth Bluetooth® 5.3 wireless technology
Display OLED (1080×2520), 6.1 inch
Speaker Yes
GPS A-GPS, A-GLONASS, Beidou, Galileo, QZSS[vfn_7]
Notes
1 Please refer to the specifications for information regarding compatible bands. mmWave is not available for some regions.
2 Please check compatible band and network condition.
3 e-SIM x1, nano-SIM x1.
4 The settings need to be changed. Contracts with different carriers may be required.
Connectivity in all environments is not guaranteed
5 According to Sony measurement
6 Please refer to the support page for compatibility.
7 Service available after spring 2024.
8 Do not use screws longer than 5.5 mm (7/32 inches). Doing so may cause a malfunction.
9 Streaming via USB connection requires compatible camera with UVC/UAC capabilities.
Please check camera specifications for compatibility.
10 Contracts with different carriers may be required depending on the customer.
Additionally, we do not guarantee connectivity in all environments.
11 Please update the application to the latest version.

High-speed stable communication with simple operability
Optimized antenna design for high-speed data transmission2
Heat dissipation system for enhanced reliability
Wide compatability livestreaming7 via HDMI or USB connection9
Dual SIM3 with automatic switchover to fastest available network2
Versatile input interfaces incl; HDMI, USB-C and LAN
Uninterrupted power supply with two USB-Type-C with PD
“Camera Wired Connection” for automatic photos/videos transfer to FTP
“Network Visualizer“ app for monitoring network conditions while transferring data
Standard ¼ inch tripod screw hole for versatile mounting and strap hole for cable management
256GB internal storage expandable via micro SD card slot up to
