Swit FM-215HDR 21.5in FHD Monitor

Overview
The FM-215HDR is a 21.5-inch 4K field production monitor with a 1920×1080 QD-LED panel, providing 1000nits high bright PQ/HLG HDR and 100% DCI-P3 wide color gamut coverage. It features VICO 1.97 A-class Eye Protecting LCD and offers 12G-SDI, 4x3G-SDI, and HDMI®2.0 4K inputs. The monitor also supports 4-ch SDI/HDMI® mixed formats multiview, with the ability to mix any 2 inputs in PBP or PIP view. It has zero latency video processing and offers 3DLUT auto self-calibration without the need for a PC. The FM-215HDR comes with built-in multi camera Delog LUTs and allows users to upload their own 3DLUTs via USB. It also offers various video analysis patterns such as waveform, focus assist, false color, and zebra. The monitor comes with a flight case and screen protector, and an optional VESA to C-stand adaptor is available for convenience in field video productions.

The FM-215HDR is equipped with an advanced Quantum Dot LED (QD-LED) panel with 1000nits high bright backlight, making it outdoor sunlight viewable and suitable for PQ/HLG/S-log3 HDR monitoring. It supports various 4K inputs, including 12G-SDI, 4×3G-SDI Quadlink 4K input, and HDMI® 2.0 4K input. The monitor also offers multiple display modes, such as quadview, Pic-by-Pic, and Pic-in-Pic, and allows for independent selection of HDR/SDR gamma and color gamut for each input. It also has a unique H/V multi-platform livestreaming view, where one input source can be displayed in both horizontal and cropped vertical views simultaneously. The FM-215HDR comes with a flight case and screen protector for protection on filmset, and also provides 2 top cheese boards for installing accessories like a wireless video receiver. An optional VESA to C-stand bracket is available for mounting the monitor on a C-stand or light stand.

Included in box
1 x Swit FM-215HDR 21.5in FHD Monitor
2 x Install Plate
1 x Screen Protector
1 x Flight Case

About the Swit FM-215HDR 21.5in FHD Monitor
**Please note that the VESA mount bracket is NOT included**

21.5” Field Production Monitor 4K inputs, 1000nits, HDR, Multi-view

FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.

1000nits Sunlight View HDRThe monitor is equipped with an advanced Quantum Dot LED (QD-LED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

All 4K Input InterfacesFM-215HDR supports various 4K inputs including:- 12G-SDI 4K in and out- 4× 3G-SDI Quadlink 4K input- HDMI® 2.0 4K input

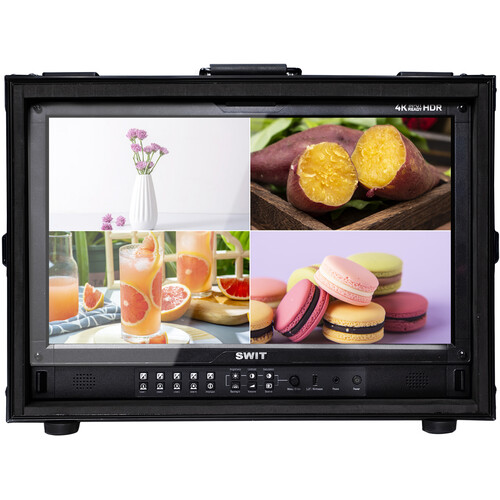

Multiview Display ModeSupports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

H/V Multi-platform Livestreaming View1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

Multiple Video Analysis Patterns
Go with Flight CaseThe FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.

Equipped with Screen ProtectorThe FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

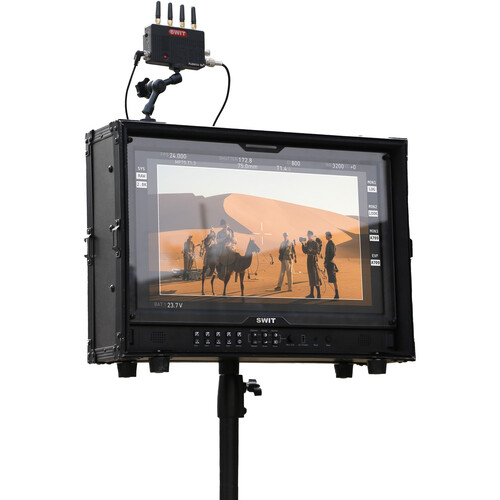

2× Top Cheese BoardsOn the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.

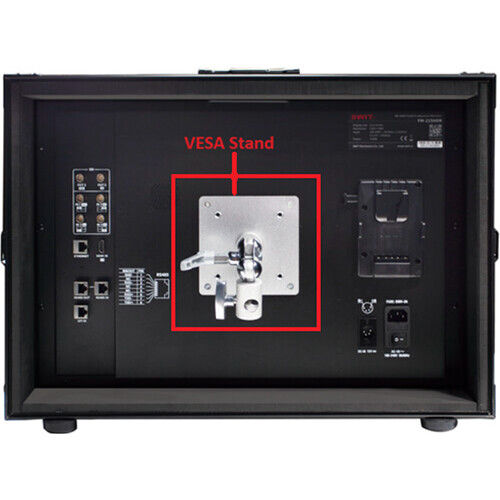

Optional VESA to C-stand BracketThe monitor has standard 10×10 VESA mount, and provides VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket. (Optional purchased accessory)

Panel type QD-LED
Size 21.5 inches
Display area 476×268mm
Resolution 1920×1080
Aspect ratio 16:9
Brightness 1000nits
Contrast 1000:1
Color depth 10-bit
Signal process 18-bit
Viewing angle 178°(H) /178°(V)
Input
BNC ×1 12G/6G/3G/HD/SD-SDI input
BNC ×3 3G/HD/SD-SDI input
HDMI® ×1 HDMI® 2.0 input
RS485 ×1 TSL 3.1/4.0 UMD input
RS485 ×1 GPI (Tally) input
RJ45 ×1 1000M Ethernet input for Webserver IP control
Output
BNC ×1 12G/6G/3G/HD/SD-SDI loop output
BNC×1 3G/HD/SD-SDI loop output
RS485 ×1 TSL 3.1/4.0 UMD output
Analog audio 3.5mm headphone and speaker
Video Format
SDI 1
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
SDI 2/3/4
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)
Quad Link 4K (Each channel)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI®
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
General
Input voltage DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption 60W
Working temperature 0°C～+50°C
Working humidity 10%～90%
Storage temperature -15°C～+60°C
Storage humidity 10%～90%
Dimensions 570×405×260mm (with case)
Net weight (main body) 14kg (with case)

21.5-inch 1920×1080 QD-LED Panel
1000nits high bright PQ/HLG HDR
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
4-ch SDI/HDMI® mixed formats multiview
Any 2 inputs mixed PBP or PIP view
Horizontal and Vertical (cropped) PBP view
Zero latency video processing (0.01frame)
3DLUT Auto Self-calibration without PC
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB
Waveform / Focus assist / False color / Zebra
With flight case and screen protector
Optional VESA to C-stand adaptor
