Teradek Bolt 6 XT MAX TX/RX Deluxe VM

OVERVIEW
The Teradek 10-2320-V (102320V) Bolt 6 XT MAX 12G-SDI/HDMI Wireless TX/RX Deluxe V-Mount Kit is a state-of-the-art real-time wireless video transmission system. It offers a range of features that make it the perfect choice for professionals in need of high-quality, reliable wireless comms and monitoring capabilities.

One of the standout features of the Bolt 6 XT Set is its patented Zero-Delay technology, which allows for lightning-fast transmission of 4K video. This is made possible by the newly opened 6GHz wireless frequency, which also reduces interference for a smoother, uninterrupted streaming experience.

The Bolt 6 XT Set comes with both a video transmitter and receiver, and offers a range of options to suit different production needs. It boasts fast reconnection times, intuitive setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity.

In addition to its impressive performance, the Bolt 6 XT Set has been designed with user convenience in mind. The compact and lightweight build runs cooler and quieter than its predecessor, the Bolt 4K. It also features an integrated 5-pin USB port for effortless wireless camera control when using SmallHD Smart Monitors.

The Bolt 6 XT Set is also cross-compatible with the entire Bolt 4K Series, giving users the option to expand their workflow requirements. It can link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

With three line-of-sight options (750 ft., 1500 ft., and the MAX Set with up to 5,000+ ft.), the Bolt 6 XT offers versatile range capabilities. And for even more convenience, users can upgrade their set to include Gold or V-Mount Battery plates.

INCLUDED IN BOX

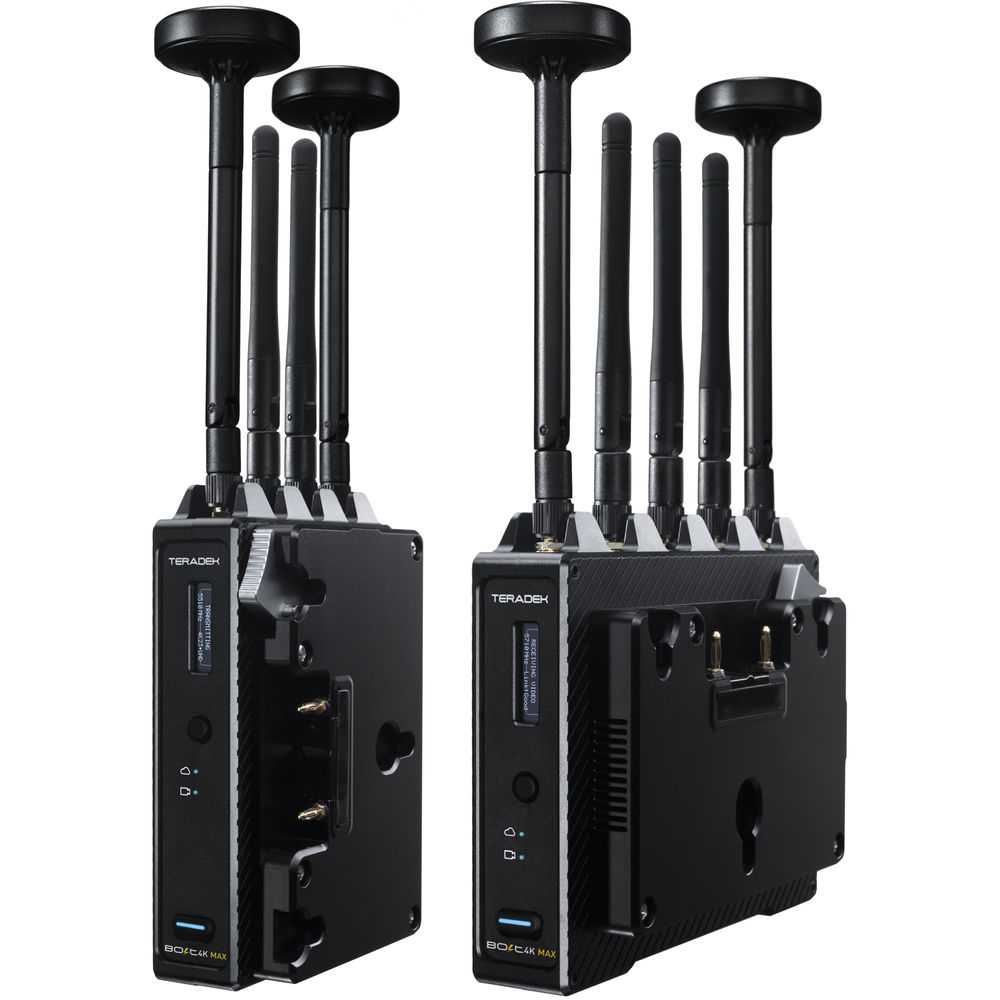

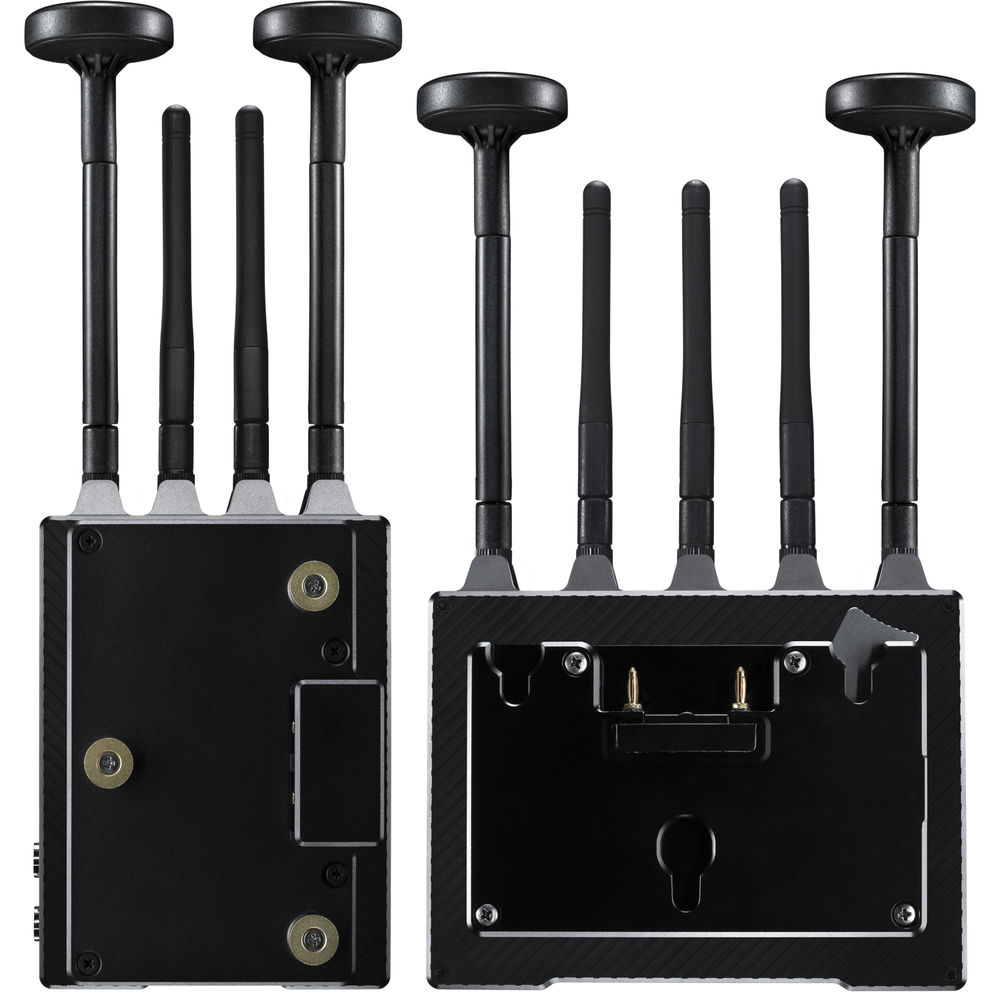

1 x Bolt 6 XT MAX TX V-Mount
1 x Bolt 6 XT MAX RX V-Mount
1 x Antenna Array
2 x Bolt 6 XT Battery Cover Plate Front
1 x Bolt 4K TX Mounting Bracket
1 x Lightstand Adapter 3/8in
1 x Hot Shoe Adaptor
4 x Screw Flat Head Phillips
2 x Screw Socket Cap A S, M3 x 16mm
1 x Hex L key 2.5mm size 3-5/8″ length
2 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable

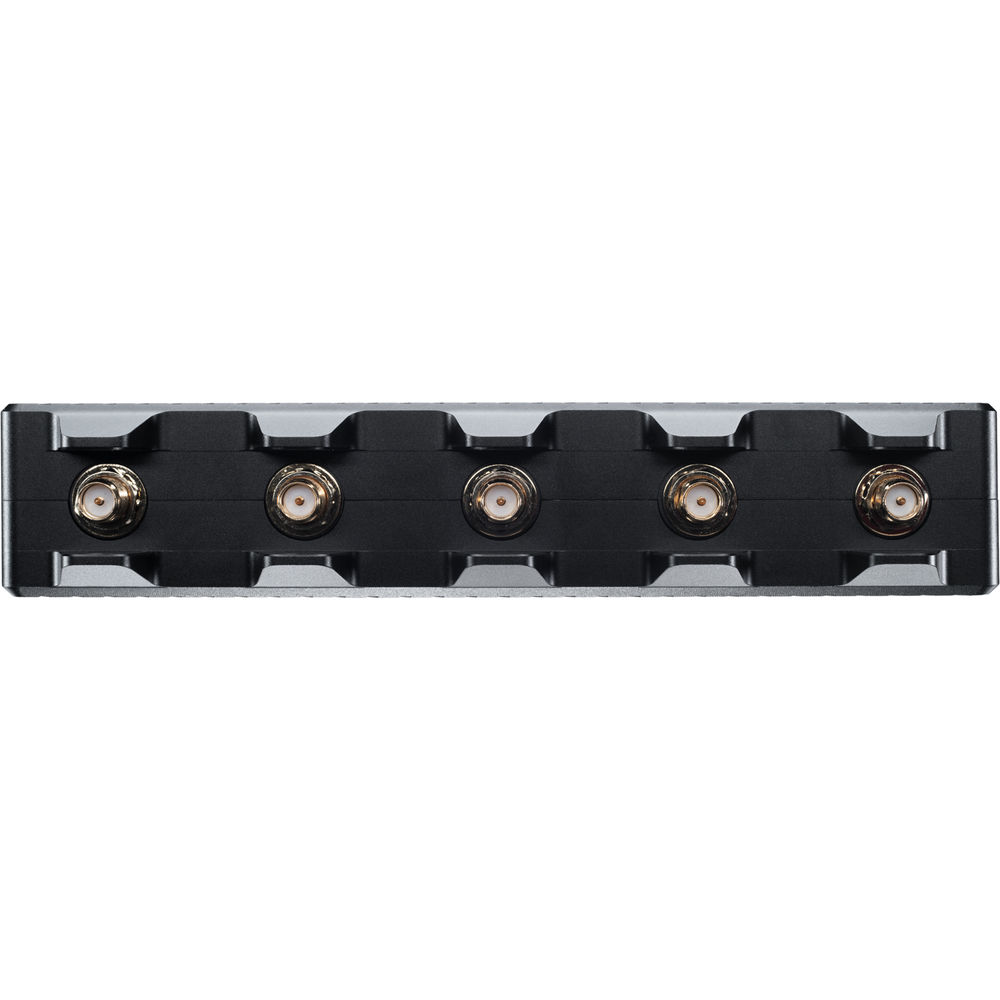

5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable
1 x Teradek Case XL – Bolt XT/4RX and Array Antenna
1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Wooden Camera – Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5″)
1 x USB 2.0 Type A Male to USB Type C Male – 1m Cable
2 x Bolt 6 XT Battery Cover Plate Rear

About The Teradek Bolt 6 XT MAX TX/RX Deluxe VM
The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive colour-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 XT video Transmitter and Receiver.

Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

Bolt 6 TX:
Video
Video Inputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
Video Outputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
SDI Ancillary Data Support Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

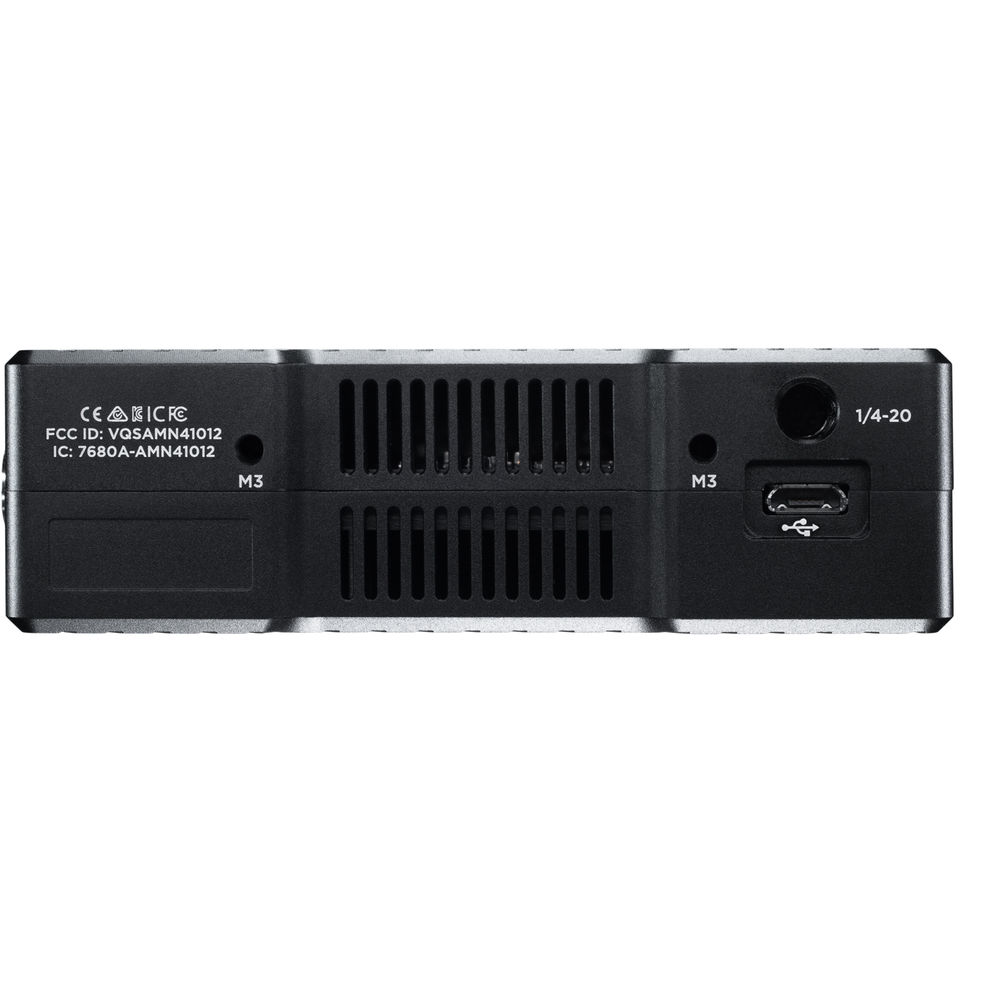

Delay Tx To Rx <0.001sec Input Cross Conversion Yes, HDMI to SDI Supported Resolutions Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) Video Processing Video Compression Visually Lossless Colour Correction None Audio Processing Audio Compression 48kHz 24-bit PCM Input Audio Input Embedded SDI/HDMI Audio Output (2 Channel) Physical Dimensions 132 x 91 x 27 mm Weight 344g (12.1 Oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and M3 holes Interfaces Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch USB Interface Functionality Upgrade via USB-C 5pin Locking Connector CCU Bluetooth 2.4 GHz Network Antennas 4 External 2 dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 23 dbm EIRP Range Up to 5000 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Power Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Gold or V mount battery plate Battery Runtime 20 Watts Environmental Operating Temperature 0-40℃ Bolt 6 RX: Video Video Outputs 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle SDI Ancillary Data Support Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit Delay Tx To Rx <0.001sec Output Video Scaling Yes, Framerate and Resolution Scaling Supported Resolutions Supported Resolutions 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) Video Processing Video Compression Visually Lossless Colour Correction 17x17x17 3D LUT (supports 10-bit colour) Audio Processing Audio Compression 48kHz 24-bit PCM Outputs Audio Output Embedded SDI/HDMI Audio Output (2 Channel) Physical Dimensions 112 x 139 x 27 mm Weight 430g (15.2 Oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and 3/8"x16 holes Interfaces Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch USB Interface Functionality Upgrade via USB-C 5pin Locking Connector CCU Bluetooth 2.4 GHz Network Antennas 5 External 2 dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 5000 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Power Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Gold or V mount battery plate Battery Runtime 18 Watts Environmental Operating Temperature 0-40℃ Zero Delay 6GHz Wireless Frequency Bolt 4K Cross-Compatibility Lightweight and Quiet Built in 5-pin USB for camera control Inputs: 12G-SDI, HDMI 2.0 Outputs: 12G-SDI, HDMI 2.0
