Overview
Link AX is the perfect solution for expanding your production networking capabilities. With its ruggedized, set-ready aluminium chassis and Wi-Fi 6 (802.11AX) router, you can easily connect more cameras and devices to your local production streaming network. It also allows for simultaneous camera-control over multiple cameras, making it ideal for various workflow scenarios such as camera-to-cloud for multiple cameras.
In addition, Link AX offers Wi-Fi monitoring with multiple Serv devices and supports up to 20 independent viewers using the VUER HDR app on mobile devices. It also has the option to add an internet connection for remote monitoring or camera-to-cloud workflows. Its robust aluminum chassis, gold-mount and V-mount battery plate options, and customizable ethernet ports make it a reliable and durable choice for production use. Please note that Serv Micro, Serv 4K, or Serv Pro are required and sold separately.
Included in box
1x Link AX Wireless Access Point Router 5 Port – V Mount
1x Lightstand Adapter 3/8in
1x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
About the Teradek Link AX Wifi Router/Access Point- VM
Link AX expands your production networking capabilities with a ruggedized, set-ready aluminium chassis wrapped around a Wi-Fi 6 (802.11AX) router. Use Link AX for multiple workflow scenarios: more cameras and devices on your local production streaming network, camera-to-cloud for multiple cameras; simultaneous camera-control over multiple cameras.
Built for Production
Wi-Fi monitoring with multiple Serv devices*
20 independent viewers using VUER HDR app on mobile devices*
Add an internet connection to enable remote monitoring or camera-to-cloud workflows
Simultaneous control of multiple cameras over Wi-Fi
Rugged Design
Robust Aluminum Chassis
Gold-Mount and V-Mount Battery Plate Options
⅜” and ¼”-20 Mounting Points
5 customizable ethernet ports
USB-A for cellular modems like Node II with Teradek Data
*Serv Micro, Serv 4K, or Serv Pro required. Sold separately.
Physical
Dimensions 7.3” W x 5.7” D x 2” H [185mm x 145mm x 51mm]
Weight Without battery plate: 37oz (1046g)
With battery plate: 38.4oz (1090g)
Construction Milled Aluminium
Mountability 2x 1/4”-20 threaded holes, 1x 3/4”-16 threaded hole
Interfaces
Configuration Interfaces Feature rich web UI for configuration nd control
Switches On/Off, Reset, and Reboot switches
Status Leds Multiple LEDs for device, wireless, and network statuses
Network

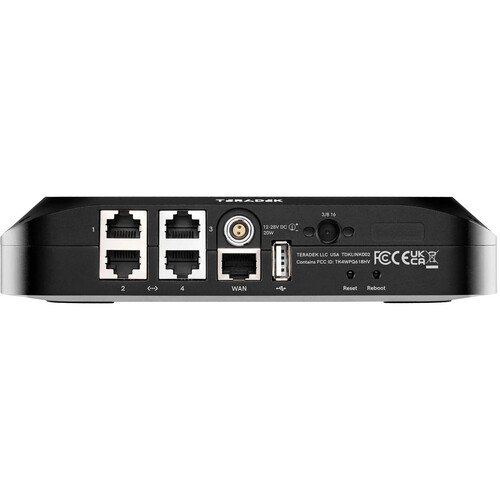

Ethernet 4x 1Gbps Ethernet Ports
1x 2.5Gbps Ethernet Port
Usb USB 2.0
Wifi 2×2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain
2×2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain
Frequency Range 2.412~2.472GHz, 5.180~5.825GHz
Encryption 802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
Power
Power Input 2pin locking connector: 12-28V
Nominal Power Consumption 17.5W (Max)
Poe Supports IEEE 802.3at 48~56V

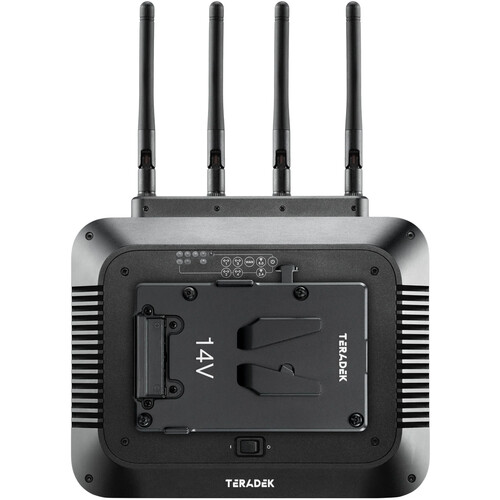

Battery Plates Integrated V mount battery plate
Environmental
Operating Temperature -10ºC to 50ºC
Storage Temperature -40ºC to 90ºC
Operating Humidity 5% to 95%
Storage Humidity Max. 90%
Expand your production networking capabilities
Wi-Fi monitoring with multiple Serv devices*
20 independent viewers using VUER HDR app*
