Tilta Armor-Man 3.0

Overview
The Armorman 3.0 is a revolutionary tool designed to provide comfort and support while operating a gimbal. It transfers the weight of the gimbal to the bodys core, reducing strain on the arms and allowing for longer periods of operation without sacrificing flexibility or performance.

The Armorman 3.0 features two mechanical arms with shock-absorbing systems that can be attached to the back or top of the adjustable vest. The tension in the arms can be adjusted with knobs to accommodate the weight of the gimbal and personal operating style. The arms can be easily attached to any top bar or gimbal ring system, making it a versatile one-man operating system when paired with the Universal Gimbal Ring Adapters and Nucleus M. When not in use, the arms can be disengaged and comfortably rested on the sides of the vest. This allows for quick and easy re-engagement when ready to operate again.

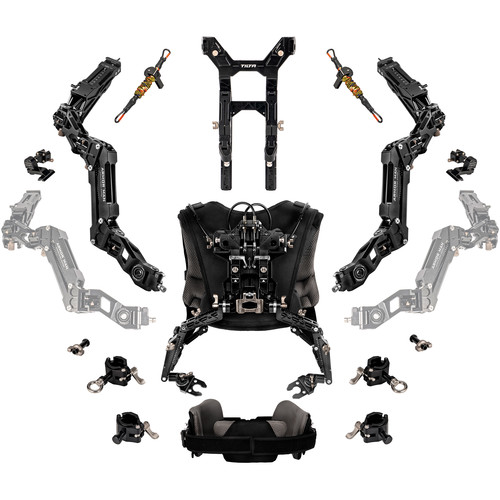

Included in box
2x Armor Man 3.0 Universal Gimbal Ring Adapter
1x Armor Man 3.0 Right Arm
1x Armor Man 3.0 Left Arm
2x Armor Man 3.0 Overhead Configuration Cable Pulley
1x Armor Man 3.0 Overhead Configuration Attachment
1x Pair – Armor Man 3.0 Waist Support
1x Armor Man 3.0 Support Vest
1x Armor Man 3.0 Support Vest Dock
1x Pair – Armor Man 3.0 Universal Gimbal Ring Adapter Clamps
1x Pair – Armor Man 3.0 Overhead Configuration Gimbal Ring Adapter Clamp
1x Armor Man 3.0 Waterproof Safety Case
1x Armor Man 3.0 Screw Kit
2x Cloth bag – Long
1x Cloth bag – Short

About the Tilta Armor-Man 3.0
The Armorman 3.0 was designed to offer comfort and support while operating your gimbal by transferring the weight of the gimbal to your body’s core, taking significant weight off your arms. This allows you to operate your gimbal comfortably, for a much longer period of time while not sacrificing flexibility or performance.

Two mechanical arms with shock-absorbing stabilised systems attach to the back of the adjustable vest or on top of the vest in high mode. When engaged, the arms have two adjustable tension knobs on each arm to allow you to adjust the tension in relation to the weight of your gimbal rig as well as your preferred operation style.

The arms attach to any top bar gimbal system or gimbal ring system with the provided mounts or support cups, which you attach by just sliding the attachment right into the arms. Paired with the Universal Gimbal Ring Adapters and Nucleus M, the Armorman 3.0 can become a one man operating system.

When you’re done operating, simply disengage the arms by pulling the release cords for each arm (in regular mode) and then comfortably rest them on the sides of the vest with the attached arm receiver. This allows you to keep the vest on in-between shots and then when you’re ready to operate again, simply re-engage the arms and re-attach the gimbal.

Supports systems up to 50lbs and gimbals with 25mm or 30mm diameters including the Advanced & Basic Ring Grips.

Compatible with| Professional 3-axis Gimbals Dimensions| 32 x 21 x 15 inches Weight| 100 lbs Net Weight| 32.4 lbs Colour| Black Materials| Aluminium-alloy, stainless steel

Tension Release Wire
Locking knob for top mounting supporter
Top mounting support clip
Mechanical arm disassembling knob
Armor-man 3.0 height adjustable handle
Armor-man 3.0 vest waist support adjustable knob
Side arm extension locking knob
Velcro for waist support
Hook for tension release wire
Top mounting support clip knob
Mechanical arm load latch
Parking frame connection point
Height adjustable dove tail plate for Armor-man 3.0 vest
Angle adjustable lever for Armor-man 3.0 vest side arm
