Overview
The battery has a capacity of 48Wh / 3.3Ah and is compatible with Sony U-type mount cameras such as FS5, FS7, PMW series camcorder, and more. It features D-Tap Advanced and USB outputs, and the D-Tap Advanced port can also be used to charge the battery with the VL-DT1 D-Tap charger. The battery also has 4 power indicator LEDs to monitor the remaining capacity and is protected from over-charge, over-discharge, and over-currents at high loads. It is also environmentally friendly and can be recycled.
This extra high-capacity Lithium Ion battery is designed specifically for Sony BP-U mount cameras like PXW-FX9/9, FS5/FS7, and PXW/PMW-series camcorder, and more. It has a 14.4V D-Tap output and a USB Type-C PD input/output which allows for charging with an optional charger. However, the minutes displayed in the viewfinder may not be accurate on some Sony cameras, so it is recommended to use the LED on the battery to monitor the remaining capacity.
Summary
Battery Capacity: 48Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: Sony BP-U
Battery Technology: Li-ion
Voltage: 14.4v
Included in box
1x SB-U50 Battery with USB PD

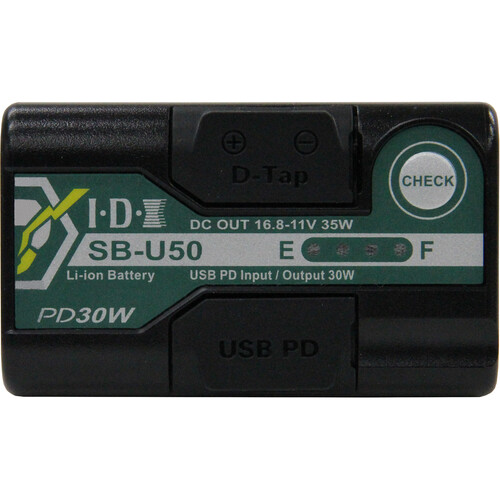

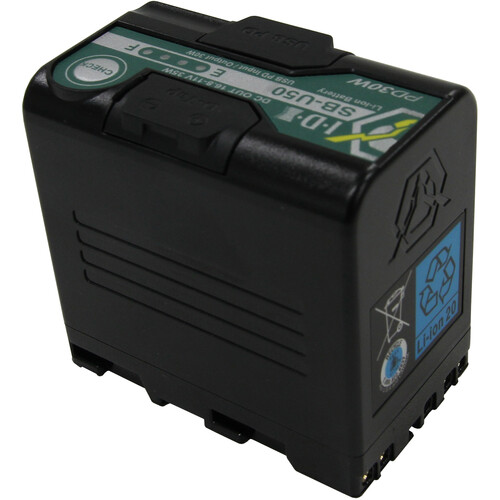

About the IDX SB-U50 Battery and USB PD

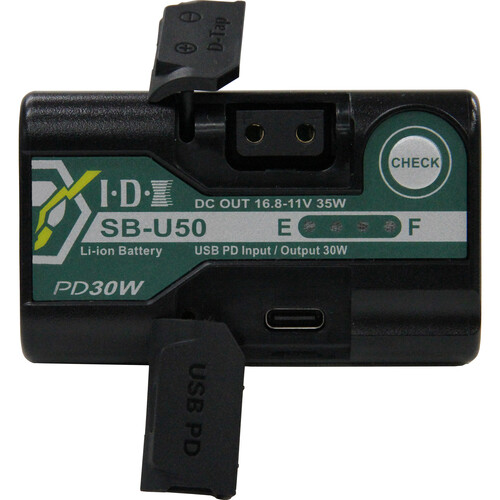

Extra high-capacity Lithium Ion battery for Sony BP-U mount cameras, such as PXW-FX9/9, FS5/FS7, and PXW/PMW-series camcorder, and more. The battery features a 14.4V D-Tap output and also USB Type-C PD input/output that can charge the battery using an optional charger.
*Minutes displayed in the viewfinder may not be accurate on some Sony cameras, LED on the battery should be used to monitor the remaining capacity.
Capacity 48Wh (14.4V/ 3.3Ah)
Max Output Voltage 16.8V DC
Nominal Voltage 14.4V DC
Max Discharge Current 3.2A‡
D-Tap 35W/2.0A(16.8V)～3.1A(11V)
USB Type-C 30W max. (5V/3A, 9V/3A, 12v/2.5A, 15V/2A)
End Voltage 11V
Battery Protection Over charge, Over discharge, Over current
Ambient Temperature To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
To discharge- -4°F ~ 113°F (50°F ~ 104°F recommended)
To store- -4°F ~ 122°F (one month)
Dimensions 1.63(W) x 2.6(H) x 2.74(D) inches
Weight 0.6 lbs approx.
48Wh / 3.3Ah capacity
Compatible with Sony U-type mount cameras FS5, FS7, PMW series camcorder, and more.
Features D-Tap Advanced, and USB outputs.
D-Tap Advanced port can also be used to charge the battery using the VL-DT1 D-Tap charger.

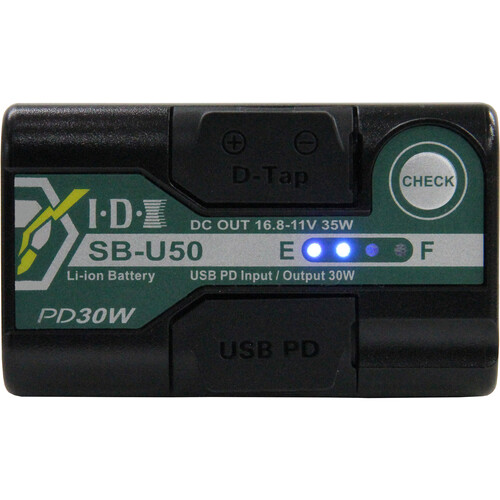

4 Power Indicator LEDs
Protected from over-charge, over-discharge, and over-currents at high loads
Environmentally friendly and can be recycled
