Laowa Nanomorph 1.5x LF 4 Lens Bundle – PL/EF – Silver Flare

Overview
Introducing the Laowa Nanomorph 1.5x LF Anamorphic Series – professional-grade anamorphic optics designed to cover more than a full-frame sensor, providing a constant 1.5x squeeze ratio. It delivers exceptional image quality for theatrical productions and high-end films. The lenses also offer a variety of flare options to accommodate different preferences and creative needs.

The generous image circle (Ø44.71mm) enhances image quality by reducing vignetting, providing optimal coverage for the widely used ARRI Alexa LF 4.5K Open Gate (Ø44.71mm) and best use of the resolution without cropping. The Ø44.71mm imaging area covers full-frame sensors, as well as 16:9, 3:2, and 4:3 formats, allowing easy output to 2:1, 2.25:1, 2.66:1, and 2.4:1 aspect ratios while maintaining quality.

Summary
Focal Length:
32mm
42mm
55mm
85mm
Max Aperture: T2.9
Lens Format: Full Frame
Lens Type: Anamorphic
Lens Mount:
Canon EF
PL Mount
Filter Thread: 77mm
Focus Throw: 270 degrees
Front Diameter: 80mm
Scale:
Imperial
Metric
Weight: 0-2kg

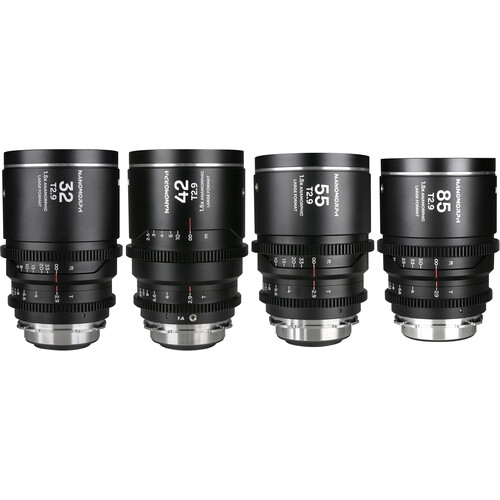

Included in box
1x Laowa Nanomorph 32mm T2.9 1.5x LF – PL/EF – Silver Flare
1x Laowa Nanomorph 42mm T2.9 1.5x LF – PL/EF – Silver Flare
1x Laowa Nanomorph 55mm T2.9 1.5x LF – PL/EF – Silver Flare
1x Laowa Nanomorph 85mm T2.9 1.5x LF – PL/EF – Silver Flare

About the Laowa Nanomorph 1.5x LF 4 Lens Bundle – PL/EF – Silver Flare
Introducing the Laowa Nanomorph 1.5x LF Anamorphic Series – professional-grade anamorphic optics designed to cover more than a full-frame sensor, providing a constant 1.5x squeeze ratio. It delivers exceptional image quality for theatrical productions and high-end films. The lenses also offer a variety of flare options to accommodate different preferences and creative needs.

Beyond Full Frame Coverage

The generous image circle (Ø44.71mm) enhances image quality by reducing vignetting, providing optimal coverage for the widely used ARRI Alexa LF 4.5K Open Gate (⌀44.71mm) and best use of the resolution without cropping. The ⌀44.71mm imaging area covers full-frame sensors, as well as 16:9, 3:2, and 4:3 formats, allowing easy output to 2:1, 2.25:1, 2.66:1, and 2.4:1 aspect ratios while maintaining quality.

Constant 1.5x Squeeze Ratio

With a 1.5x squeeze ratio, the Laowa Nanomorph achieves a 2.66:1 aspect ratio on a 16:9 sensor after de-squeeze, delivering a much more pronounced anamorphic and cinematic look compared to a 1.33x anamorphic lens.

Consistent Bokeh from Centre to Edge

The shape of the bokeh changes from the centre to the edges of the frame, sometimes taking on a “moon-shaped” appearance, which can occasionally

be distracting. In contrast, the Nanomorph LF delivers a more consistent bokeh across the frame.

Waterfall Bokeh

The iris ranges from T2.9 to T22 across the entire series, enabling filming in all lighting conditions and meeting the dynamic demands of on-set

production. A stunning shallow depth of field can be achieved at wide apertures, and the lenses create a smooth, organic waterfall focus roll-off in

the background—one of the most sought-after anamorphic characteristics in the film industry.

Outstanding Image Quality

The impressive sharpness and contrast of this lens set make it highly versatile for various production needs, matching the performance of modern sensors. Even when used wide open, the image remains sharp and pristine, suitable for theatrical and cinematic projects. For those seeking a vintage look, the lenses offer ample flexibility for post-production adjustments or pairing with filters, empowering cinematographers to explore their creative vision for the long term.

Great Flexibility in Composition

Many anamorphic lenses on the market exhibit over compressed edge near the edges of the frame, causing the size and shape of objects to change (i.e.

swimming effect), especially when positioned near the edges. This limits cinematographers’ creative freedom in composition and is generally not a

‘characteristic’ they seek in their work. In contrast, the Nanomorph LF offers excellent control over the performance of the edge.

Low Focus Breathing

Low focus breathing ensures consistent framing and a stable field of view when shifting focus, making it ideal for seamless focus pulls and smooth transitions. This enhances video quality by minimizing distractions and maintaining precise compositions, leading to more natural, professional-looking visuals.

Compact Prestigious Lens

Nanomorph LF lenses are half the size and weight of other lenses on the market that offer similar exceptional optical performance. Laowa strikes the sweet spot between compact size, weight, optical quality, and professional usability, making these lenses ideal for a wide range of productions. Additionally, they are priced at accessible points.

Flare Options

The lens is available with sci-fi blue, elegant amber and neutral silver flare coatings to suit various preferences and usage scenarios.

*Silver flares adapt to the colour of the light source, shifting accordingly.

Precision with Extended Focus Throw

The long focus throw (270°) allows for precise adjustments when focusing, which enhances control over depth of field and focus effects. It offers smooth transitions between focus points.

Easy Back Focus Calibration

This mechanism always allows calibrate the back focus on site easily and quickly.

Interchangeable Mounts

The innovative interchangeable mount system allows to change the mount on your lens to match your different cameras. Each lens mount kit includes shims for micro-adjustment of flange depth to get the perfect fit every time. By default, Nanomorph LF comes in Arri PL mount. However, additional interchangeable

bayonets are available for purchase.

Focal Length 32mm
42mm
55mm
85mm
Aperture Range T2.9-T22
Angle of View
32mm 81.4° x 43.5°
42mm 66.5° x 33.8°
55mm 53.2° x 26.1°
85mm 35.9° x 17.1°
Image Circle Diameter 36.7 x 25.54mm (Ø 44.71mm)
Squeeze Ratio 1.5X
Format Full-Frame
Lens Structure
32mm 17 elements in 15 groups
42mm 17 elements in 15 groups
55mm 15 elements in 13 groups
85mm 15 elements in 13 groups
Aperture Blades 13
Focus Throw 270°
Aperture Throw 70°
Focus Indicator Dual Scale
Min. Focusing Distance
32mm 49cm / 1’7”
42mm 50cm / 1’8”
55mm 55cm / 1’10”
85mm 100cm / 3’3”
In-focus Driving Mode Manual Focus
Gear Mod 0.8M
Filter Thread Diameter 77mm
Front Diameter 80mm
Dimensions
32mm ø86.4mm x 121mm / ø3.4” x 4.76”
42mm ø86.4mm x 121mm / ø3.4” x 4.76”
55mm ø86.4mm x 114mm / ø3.4” x 4.49”
85mm F86.4mm x 113mm / ø3.4” x 4.45”
Weight
32mm 1070g / 2.34lbs
42mm 1030g / 2.27lbs
55mm 907g/ 2lbs
85mm 922g / 2.03lbs
Flare Colour Amber / Blue / Silver
Mount ARRI PL, Canon EF

Full-Frame Coverage
Constant 1.5x Squeeze Ratio
T2.9 Large Aperture
Consistent Bokeh from Centre to Edge
Low Distortion
Low Focus Breathing
Four Versatile Focal Length (32mm,42mm,55mm,85mm)
Cinematic Flare with Amber/Blue/Silver Colour Options
Easy Back Focus Calibration
PL/EF Mount + Optional Mirrorless Mounts Available
