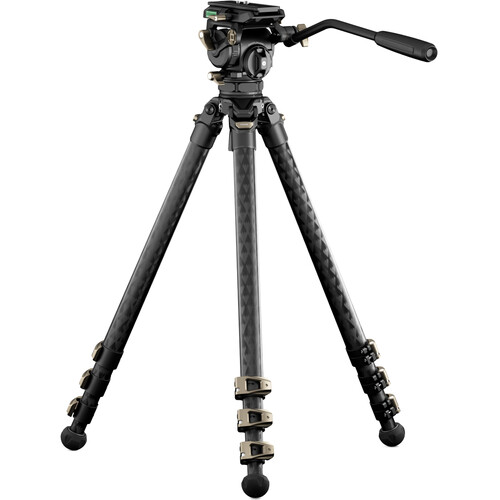

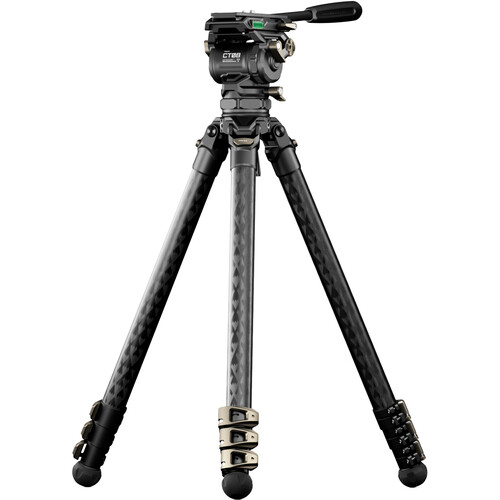

Tilta 75mm Fluid Head 3-Stage Tripod

Overview
Tilta introduces their first tripod series, designed for high-level users who demand high performance, quality, and precision. The tripod head is made from aerospace-grade aluminium alloy and features 8 levels of counter balance, supporting systems up to 17.5lbs. It also has 4 levels of adjustable drag for smooth operation and is compatible with both Manfrotto and DJI-Standard Arca-Swiss quick release plates for efficient transitions to gimbals.

The carbon fiber legs are heavy duty and retractable spikes make it suitable for harsh environments. With a maximum height of just under 6ft and a minimum of 5.1 inches, it offers versatility for various shooting situations. The legs also have a unique carbon fiber reinforced design and can support up to 110lbs. Additionally, the system is resistant to extreme temperatures and has threads for mounting accessories. The 75mm bowl is compatible with other 75mm support systems and the 3-stage buckle locking system provides a faster and stronger setup compared to traditional ring locking systems.

Summary
Tripod Head Type: Fluid Head
Max Payload: 5-10kg
Leg Section: 3 Section
Spreader Type: No Spreader
Head Fitting: 75mm
Material:
Aluminium
Carbon Fibre
Included in box
1 x Tilta 75mm Cine Fluid Head with 3-Stage Carbon Fiber Tripod Legs (8KG) – Space Grey

About the Tilta 75mm Fluid Head 3-Stage Tripod
Introducing Tilta’s first tripod series which seamless integrates high performance, high quality, and high precision into one, creating a professional imaging solution for high-level users.

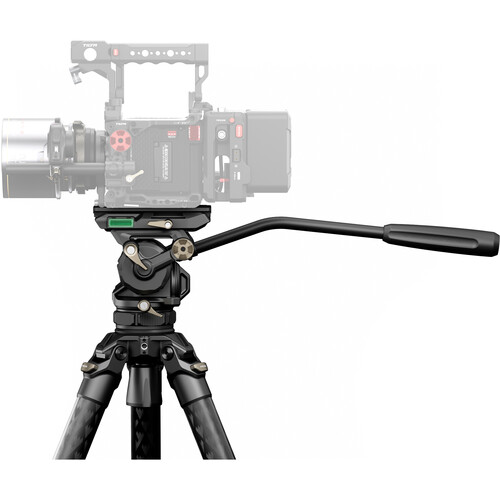

The professional-grade head provides outstanding performance. Made from aerospace-grade aluminium alloy processed through CNC precision machining, it achieves high precision and excellent stability.

The tripod head supports between 2.2- 17.5lbs and the counter balance has 8 levels of dynamic counterbalance adjustment, supporting perfect balance for systems within the weight requirement.

The head features 4 levels of adjustable drag, ensuring comfortable operation for a range of different systems. Smooth damping ensures fluid pitch and horizontal movement, easily creating a cinematic feel.

The head natively includes a Manfrotto Quick Release Plate, while also compatible with DJI-Standard Arca-Swiss Quick Release Plates, eliminating the need for replacing quick release plates when transitioning to gimbals, greatly improving efficiency.

Constructed from high quality materials which provides an excellent feel and reliability, ensuring uniform dynamic counterbalance for the tilt axis.

This kit uses 3-stage telescopic legs that can adjust to different heights between 5.1” and 70.8″. Rubber spikes on the bottom of the tripod legs help protect delicate floors and can be adjusted to expose metal spikes, perfect for use outdoors on rough terrain such as mud, grass, sand, and ice.

The carbon fiber legs are constructed with a unique carbon fiber reinforced wrap and have a diameter of 36mm. This can support up to 110lbs, which is stronger than traditional carbon fiber processes.

The system is resistant to high and low temperatures, operating in a range between 140°F to -40°F, ensuring your tools will not slow you down in harsh environments.

Reserved ¼-20 and ⅜-16 threads on the side of the tripod, can be used for supporting heavy equipment such as gimbals or for mounting smaller accessories like lights, tablet clamps, phone clamps, etc.

This tripod features a standard size 75mm bowl which is compatible with other 75mm tripods, heads, sliders, etc. The tripod adopts a 3-stage buckle locking system, which is faster and stronger than traditional ring locking systems.

Counterbalance 8 Stops
Drag 4 Stops Vertical / 4 Stops Horizontal
Tilt Range +90° to -60°
Ball Diameter 75mm / 2.95 inches
Temperature Range -50° to +60°C / -58° to +140°F
Quick Release Type Arca/Manfrotto Dual Receiving Platform.
Adjustable center or gravity front and back.
Also compatible with Tilta Dovetail after removing the receiving platform
Special Feature High-Strength single tube with lever-locking mechanism
36mm / 32mm / 28mm
24mm tube diameter
Net Weight 4.5kg / 9.9 lbs
Dimensions 158 x 135.5 x 749.5 mm
6.2 x 5.3 x 29.5 inches
Minimum Height 250mm / 0.82ft
Maximum Height 1800mm / 5.91ft
Materials. Aluminium Alloy, Filament Wound Carbon Fiber
Colour Space Grey

75MM STANDARD Tripod Head and Legs Compatible with a Wide Range of other 75mm Support Systems
COUNTER-BALANCE Allows Users to Perfectly Balance Systems Up to 17.5lbs via 8 Levels of Counter Balance
ARCA READY Tripod Head Natively Compatible with DJI’s ARCA Swiss for Quick Gimbal Transitions
HEIGHT ADJUSTMENT Reaches Just Under 6ft at its Highest and 5.1 Inches at its Lowest
CARBON FIBER LEGS Feature Heavy Duty Reinforced Design and Retractable Spikes for Harsh Environments
