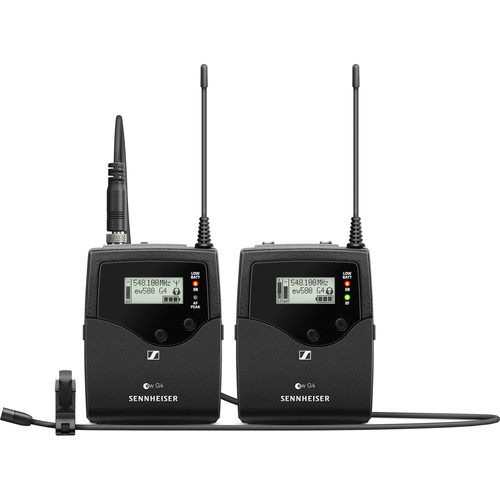

Sennheiser Portable G4 Wireless Set

Overview
The Portable G4 Lavalier Wireless Set is a highly versatile solution for professional film sound. It is a rugged all-in-one wireless system that is perfect for interviews and recording. The system is known for its professional sound quality and excellent construction. It is also incredibly easy to use and has a fast setup time.

This wireless set offers a range of up to 100 meters and has an impressive bandwidth of up to 88 MHz, with the ability to support up to 32 channels. The increased RF output power of 10/30/50 mW allows for even better sound quality. The system also has a long battery life of up to 8 hours, making it perfect for long recording sessions. Please note that this product is designed for use with UK frequency ranges, so it is important to check your frequency range before purchasing.

Summary
Battery Mount / Type: AA
Connector: 3.5 mm jack
Connector type: 3.5mm jack
Dimensions:
Number of Channels: 32
Weight:
Included in box
1x EK 500 G4 camera receiver
1x SK 500 G4 bodypack transmitter
1x MKE 2 clip-on microphone
4x AA batteries
1x CL 1 3.5 mm jack cable
1x CL 500 XLR to 3.5 mm jack adapter cable
1x CA 2 camera adapter
1x fur windscreen for MKE 2
1x quick guide
1x safety guide
1x manufacturer declaration sheet

About the Sennheiser Portable G4 Wireless Set
Please Note: This product supports UK Frequency Range. Please check your frequency range before purchasing.

Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use.
Impressive film sound was never that easily done. The legendary MKE 2 Gold professional clip-on microphone ensures best speech intelligibility, the portable transmitter and receiver are easily mounted and ensure 8 hours of mobile operation.

With an easy and flexible wireless synchronisation between transmitter and receiver via infrared, the Portable G4 Lavalier Wireless Set has 88Mhz bandwidth, 32 channels, an increased RF output power and a transmission range of up to 100 metres.

EK 500 G4
Frequency Range 606-678 MHz
Dimensions Approx. 82 x 64 x 24 mm
Compander Sennheiser HDX
THD (Total Harmonic Distortion) ≤ 0.9 %
Weight (incl. batteries) approx. 130 g

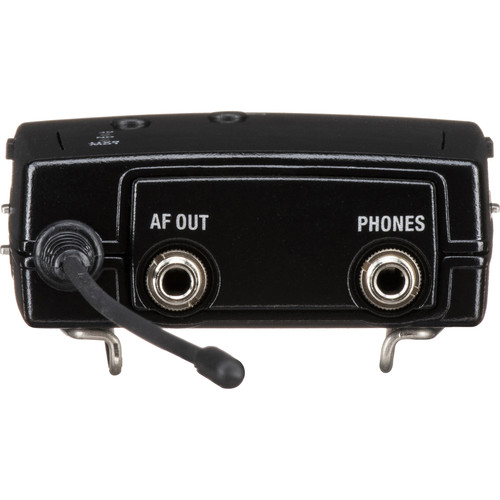

Audio Output 3.5 mm jack socket: +17 dBu (mono, unbalanced)
Signal-to-noise Ratio Line: ≥ 110 dBA, Phones: approx. 90 dBA
Switching Bandwidth up to 88 MHz
Peak Deviation ±48 kHz
Nominal Deviation ±24 kHz
Operating Time Typically 8 h
Modulation Wideband FM
Power Supply 2 AA batteries, 1.5 V or BA 2015 accupack
Current Consumption at nominal voltage: typ. 140 mA
with receiver switched off: ≤ 25 µA
Adjacent Channel Rejection Typically ≥ 65 dB
Intermodulation Attenuation Typically ≥ 65 dB
Powering 3 V battery / 2.4 V rechargeable battery
Receiving Frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to
32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF Sensitivity < 1.6 μV for 52 dBA eff S/N Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV Temperature Range -10 °C to +55 °C Receiver Principle Adaptive diversity Blocking ≥ 70 dB SK 500 G4 Dimensions Approx. 82 x 64 x 24 mm Compander Sennheiser HDX THD (Total Harmonic Distortion) ≤ 0.9 % Weight (incl. batteries) approx. 160 g Signal-to-noise Ratio ≥ 115 dBA RF Output Power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW Switching Bandwidth up to 88 MHz Peak Deviation ±48 kHz Nominal Deviation ±24 kHz Operating Time Typically 8 h Modulation Wideband FM Power Supply 2 AA batteries, 1.5 V or BA 2015 accupack Current Consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA Input Impedance 40 kΩ, unbalanced / 1 MΩ Max. Input Voltage 3 Veff Powering 3 V battery / 2.4 V rechargeable battery Transmission Frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels AF Frequency Response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz Temperature Range -10 °C to +55 °C Frequency Stability ≤ ±15 ppm MKE 2 Connector 3.5 mm jack Frequency Response 20 to 20.000 Hz ± 3 dB Max. Sound Pressure Level 142 dB Cable Length approx. 1.60 m Transducer Principle pre-polarized condensor microphone Pick-up Pattern omni-directional Sensitivity in free field, no load (1kHz) 5 mV/Pa, ± 3 dB Equivalent Noise Level 26 dB Equivalent Noise Level weighted as per CCIR 468-3 39 dB Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording Professional sound and excellent construction quality Easy to use and fast setup time Easy and flexible wireless synchronisation between transmitter and receiver via infrared Up to 88 MHz bandwidth, up to 32 channels Range: up to 100 meters / 330 feet Increased RF output power (10/30/50 mW) Up to 8 hours of operation time
