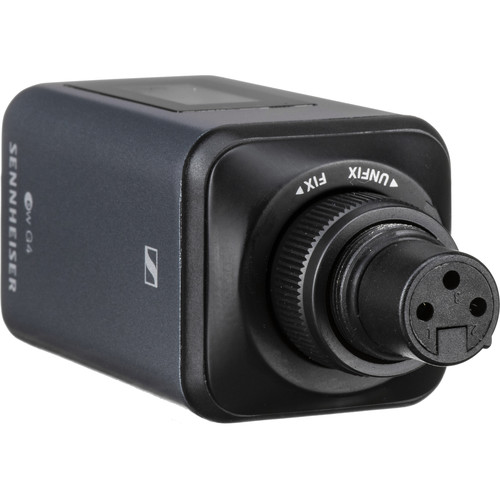

Sennheiser SKP 100 G4-GB

Overview
The Sennheiser G4 wireless system is a must-have for any professional photographer or videographer. Its powerful camera receiver can easily be mounted onto any type of camera, making it convenient and versatile. The sound and construction quality are top-notch, ensuring excellent audio for all your projects.

The G4 system also boasts a fast setup time and reliable wireless transmission, with a range of up to 100 metres or 330 feet. It has an impressive battery life of up to 8 hours, making it perfect for long shoots. However, please note that the handheld transmitter is the only component included and optional microphone heads must be purchased separately.

This product is designed to support the UK frequency range, so be sure to check your frequency range before purchasing. With its flexibility, ease of use, and reliability, the Sennheiser G4 wireless system is the ultimate choice for any on-the-go professional, from documentary filmmakers to journalists and more.

Summary
Accessory Type: Transmitter
Included in box
1x SKP 100 G4 plug-on transmitter
2x AA batteries
1x Quick guide
1x Safety guide
1x Manufacturer declaration sheet

About the Sennheiser SKP 100 G4-GB
Please Note: Handheld transmitter only supplied – Optional microphone heads must be purchased separately.

Please Note: This product supports UK Frequency Range. Please check your frequency range before purchasing.

The ultimate wireless system that grows with you. The fourth generation of Sennheiser’s most popular series worldwide leaves nothing to be desired in terms of flexibility, ease of use and reliability. Whether you are on tour, at an outdoor shoot, in the conference room or in the auditorium – the G4 can do it all. Powerful plug-on transmitter that turns every wired dynamic microphone into a wireless transmitter for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

RF characteristics
Modulation Wideband FM
Frequency range GB: 606 – 648 MHz
Transmission frequencies Max. 1680 frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 Ω Max. 30 mW
Pilot tone squelch Can be switched off
AF characteristics
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ≥ 110 dBA
Total harmonic distortion ≤ 0.9 %
Max. input voltage 3.3 V
Input impedance 68 kΩ, unbalanced
Input capacitance Switchable
Setting range for input sensitivity 48 dB, adjustable in 6 dB steps
Overall device
Temperature range -10 °C to +55 °C
Power supply 2 AA batteries, 1.5 V or
BA 2015 accupack
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Current consumption at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
Operating time Typically 8 h
Dimensions Approx. 105 x 43 x 43 mm
Weight (incl. batteries) approx. 195 g

Powerful camera receiver, easily mounted on any kind of camera
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 100 metres / 330 feet
Up to 8 hours of operation time
